1 / 3مسجلات NVR سلسلة HSN PoE

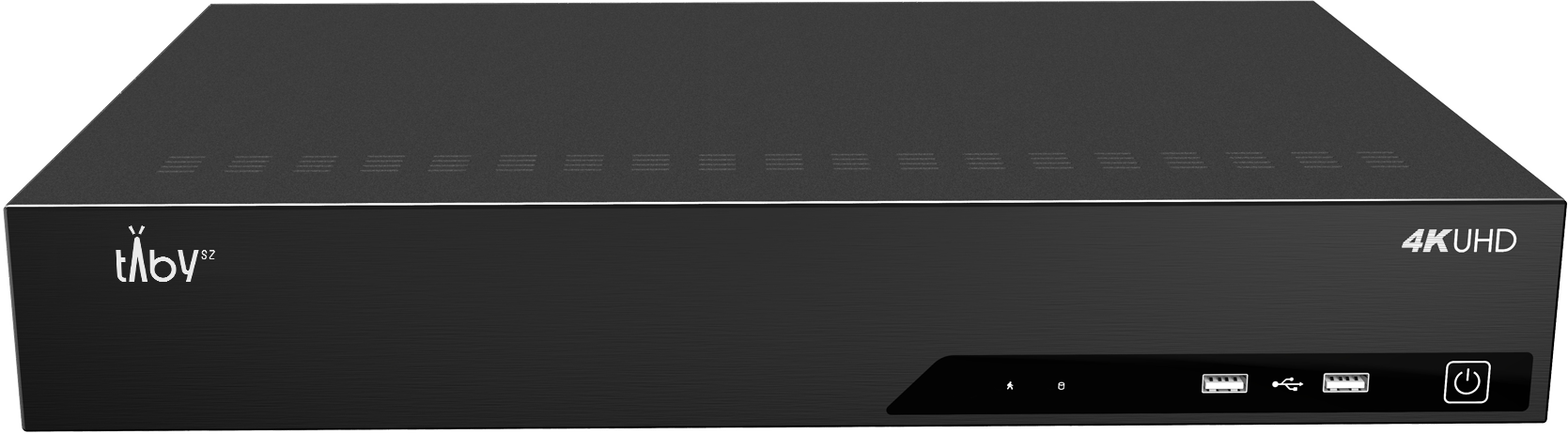

TA-V77032-UP7
العلامة: Tabyszالموديل: TA-V77032-UP7
16/32CH Video Input 4*10TB Storage Multi-video Output Decode up to 4-CH 4K UHD & 16-CH 1080P ANR RAID
أهم الميزات
- 16/32CH Video Input
- 4*10TB Storage
- Multi-video Output
- Decode up to 4-CH 4K UHD & 16-CH 1080P
- ANR
- RAID
المواصفات الفنية
| البند | القيمة |
|---|---|
| Network Video Input | 32-CH |
| Incoming Bandwidth | 256Mbps or 200Mbps (when RAID is enabled) |
| Outgoing Bandwidth | 256Mbps or 200Mbps (when RAID is enabled) |
| HDMI Output | 1-CH, Resolution: 3840x2160/60Hz, 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz; HDMI Supports Audio Output |
| VGA Output | 1-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Dual Stream | Support |
| Recording Resolution | 12MP/8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/D1/VGA/CIF/QCIF |
| Synchronous Playback | 4*(30fps @8MP), 5*(30fps@6MP), 6*(30fps @5MP), 8*(30fps@4MP), 10*(30fps@3MP), 16*(30fps@1080P), 32*(30fps@720P) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264 |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Sample Rate | 8KHz/16KHz |
| SATA | 4*SATA HDD (3.5”) |
| Capacity | Up to 10TB capacity for each HDD |
| Array Type | RAID0, RAID1, RAID5, RAID6, RAID10 |
| Recording Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Snapshot Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Playback Type | General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback |
| Backup | Video Backup, Image Backup |
| Protocol | IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS |
| Network Interface | 1*RJ45 10/100/1000Mbps |
| Serial Interface | 1*RS-485 Series Port for PTZ; 1*RS-232 Series Port for Console; 1*RS-485 Series Port for Keyboard |
| USB Interface | 1*USB 3.0; 2*USB 2.0 |
| Audio Input/Output | 1*RCA/1*RCA |
| Alarm Input/Output | 16-CH/4-CH |
| Interface | 24*RJ45 10/100Mbps |
| Power Output | ≤200W |
| Supported Standard | IEEE 802.3af/at |
| Compatibility | ONVIF, API |
| Advanced Function | ANR |
| ANPR | Supported |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed |
| Keyboard Control | Supported for tӒbysz Keyboard |
| Power Supply | AC 100V~240V 50Hz~60Hz |
| Consumption | ≤18W(Without HDD, without enabling PoE) |
| Working Conditions | Temperature: -10°C~55°C/Humidity: 10%~90% |
| Dimensions | Rack Mountable Chassis (1.5U Standard); 440mm(W)X390mm(D)X66.75mm(H) |
| Weight | 4.89kg |
| Warranty | 3/5 Years |
المواصفات الفنية مصدرها الشركة المصنّعة وقد تتغير دون إشعار.
