1 / 3مسجلات NVR سلسلة HSN

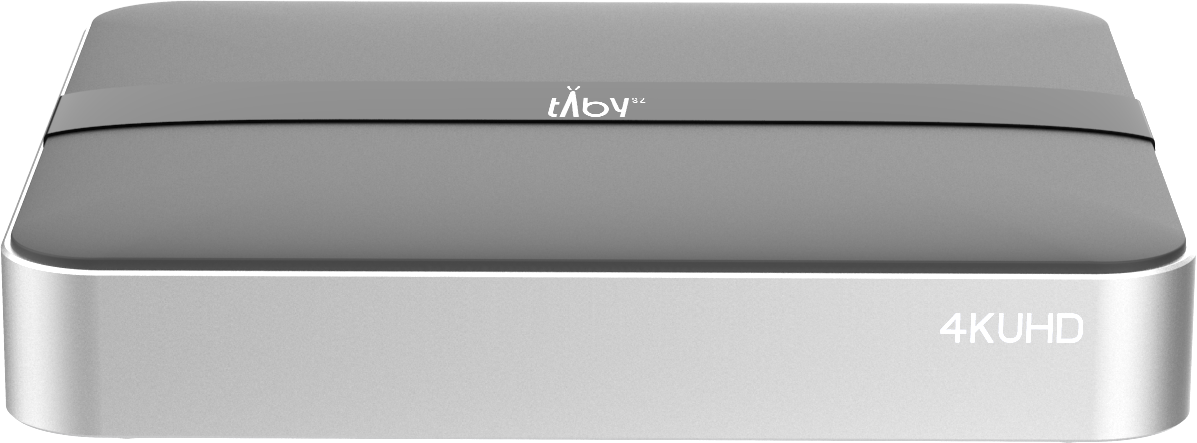

TA-V11004-UK
العلامة: Tabyszالموديل: TA-V11004-UK
4-CH Video Input Up to 10TB Storage Ultra-mini Size Decode up to 1-CH 4K UHD & 4-CH 1080P ANR Versatile Interfaces
أهم الميزات
- 4-CH Video Input
- Up to 10TB Storage
- Ultra-mini Size
- Decode up to 1-CH 4K UHD & 4-CH 1080P
- ANR
- Versatile Interfaces
المواصفات الفنية
| البند | القيمة |
|---|---|
| Network Video Input | 4-CH |
| Incoming Bandwidth | 40Mbps |
| Outgoing Bandwidth | 40Mbps |
| HDMI Output | 1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz; HDMI Supports Audio Output |
| Dual Stream | Support |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/D1/VGA/CIF/QCIF |
| Synchronous Playback | 1*(30fps @8MP), 1*(30fps @6MP), 1*(30fps @5MP), 2*(30fps @4MP), 2*(30fps @3MP), 4*(30fps @1080P), 4*(30fps @720P) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264 |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Sample Rate | 8KHz/16KHz |
| Synchronous Recording | 4*5MP |
| SATA | 1*SATA HDD (3.5”) |
| Capacity | Up to 10TB capacity for each HDD |
| Recording Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Snapshot Type | N/A |
| Playback Type | General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback |
| Backup | Video Backup, Image Backup |
| Protocol | IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS |
| Network Interface | 1*RJ45 10/100Mbps |
| USB Interface | 2*USB 2.0 |
| Compatibility | ONVIF, API |
| Advanced Function | ANR |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed |
| Keyboard Control | Supported for tӒbysz Keyboard |
| Power Supply | DC 12V 2A |
| Consumption | ≤2.3W(Without HDD) |
| Working Conditions | Temperature: -10°C~55°C; Humidity: 10%~90% |
| Dimensions | 220mmX200mmX43.6mm |
| Weight | 0.19Kg |
| Warranty | 3/5 Years |
المواصفات الفنية مصدرها الشركة المصنّعة وقد تتغير دون إشعار.
هل هذا المنتج مناسب لك؟
إذا كنت غير متأكد من ملاءمة هذا المنتج لموقعك، تواصل معنا وسنساعدك على تحديد احتياجك واختيار الحل الأنسب لك.
اطلب استشارة
