1 / 3مسجلات NVR سلسلة HSN

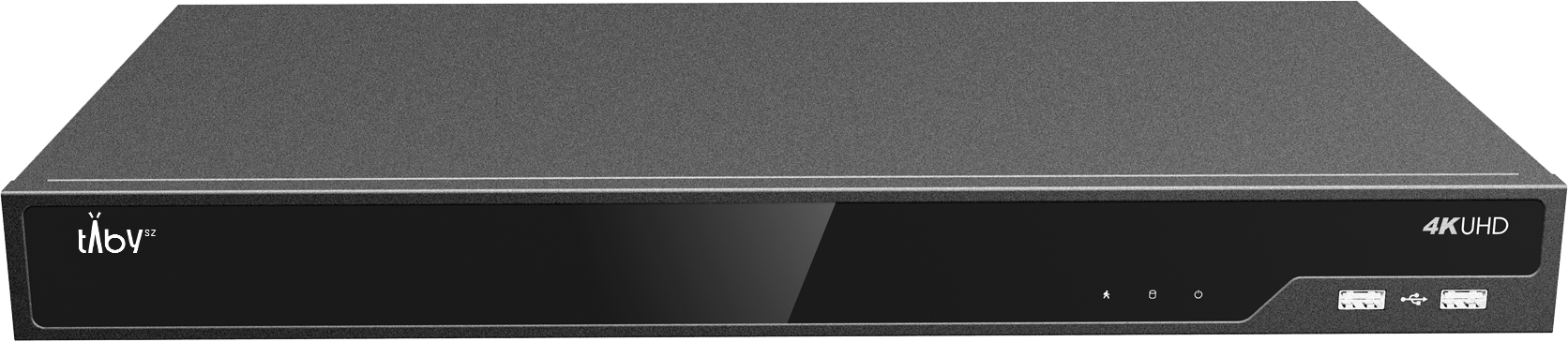

TA-V55008-UK
العلامة: Tabyszالموديل: TA-V55008-UK
8CH Video Input 2*10TB Storage Decode up to 2-CH 4K UHD & 8-CH 1080P ANR ANPR
أهم الميزات
- 8CH Video Input
- 2*10TB Storage
- Decode up to 2-CH 4K UHD & 8-CH 1080P
- ANR
- ANPR
المواصفات الفنية
| البند | القيمة |
|---|---|
| Network Video Input | 8-CH |
| Incoming Bandwidth | 80Mbps |
| Outgoing Bandwidth | 80Mbps |
| HDMI Output | 1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output) |
| VGA Output | 1-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Dual Stream | Support |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/D1/VGA/CIF/QCIF |
| Synchronous Playback | 1*(30fps @8MP), 1*(30fps @6MP), 1*(30fps @5MP), 2*(30fps @4MP), 2*(30fps @3MP), 4*(30fps@1080P), 8*(30fps @720P) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264 |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Sample Rate | 8KHz/16KHz |
| Synchronous Recording | 8*5MP |
| SATA | 2*SATA HDD (3.5”) |
| Capacity | Up to 10TB capacity for each HDD |
| Recording Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Playback Type | General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback |
| Backup | Video Backup, Image Backup |
| Protocol | IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS |
| Network Interface | 1*RJ45 10/100/1000Mbps |
| USB Interface | 2*USB 2.0 |
| Audio Input/Output | 1*RCA/1*RCA |
| Alarm Input/Output | 4-CH/1-CH |
| Compatibility | ONVIF, API |
| Advanced Function | ANR |
| ANPR | Support |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed |
| Keyboard Control | Supported for tӒbysz Keyboard |
| Power Supply | DC 12V 50Hz~60Hz |
| Consumption | ≤3W(Without HDD) |
| Working Conditions | Temperature: -10°C~55°C/Humidity: 10%~90% |
| Dimensions | Rack Mountable Chassis (1.0U Standard); 380mm(W)X317.6mm(D)X51.8mm(H) |
| Weight | 1.9kg |
| Warranty | 3/5 Years |
المواصفات الفنية مصدرها الشركة المصنّعة وقد تتغير دون إشعار.
