1 / 4USS600COB3 16:9 Indoor COB LED Screen
USS600COB3 is a high-performance indoor COB LED display with a native 16:9 cabinet aspect ratio ($600\times337.5\text{mm}$). Utilizing advanced Flip-chip COB technology with compound encapsulation and black coating, it provides superior pixel density, higher contrast, high brightness ($600\text{ cd/m}^2$), and improved reliability. Designed for space-saving installations, it offers full front maintenance and a cable-free HUB connection between modules and cabinets. It delivers an exceptional visual experience with a $3840\text{Hz}$ refresh rate, 16-bit gray grade, and $160^\circ$ wide viewing angles.
أهم الميزات
- Native 16:9 aspect ratio design for standard 2K, 4K, and 8K display resolution
- Flip-chip COB technology offering high contrast, brightness, and high reliability
- Full front service design saving installation space

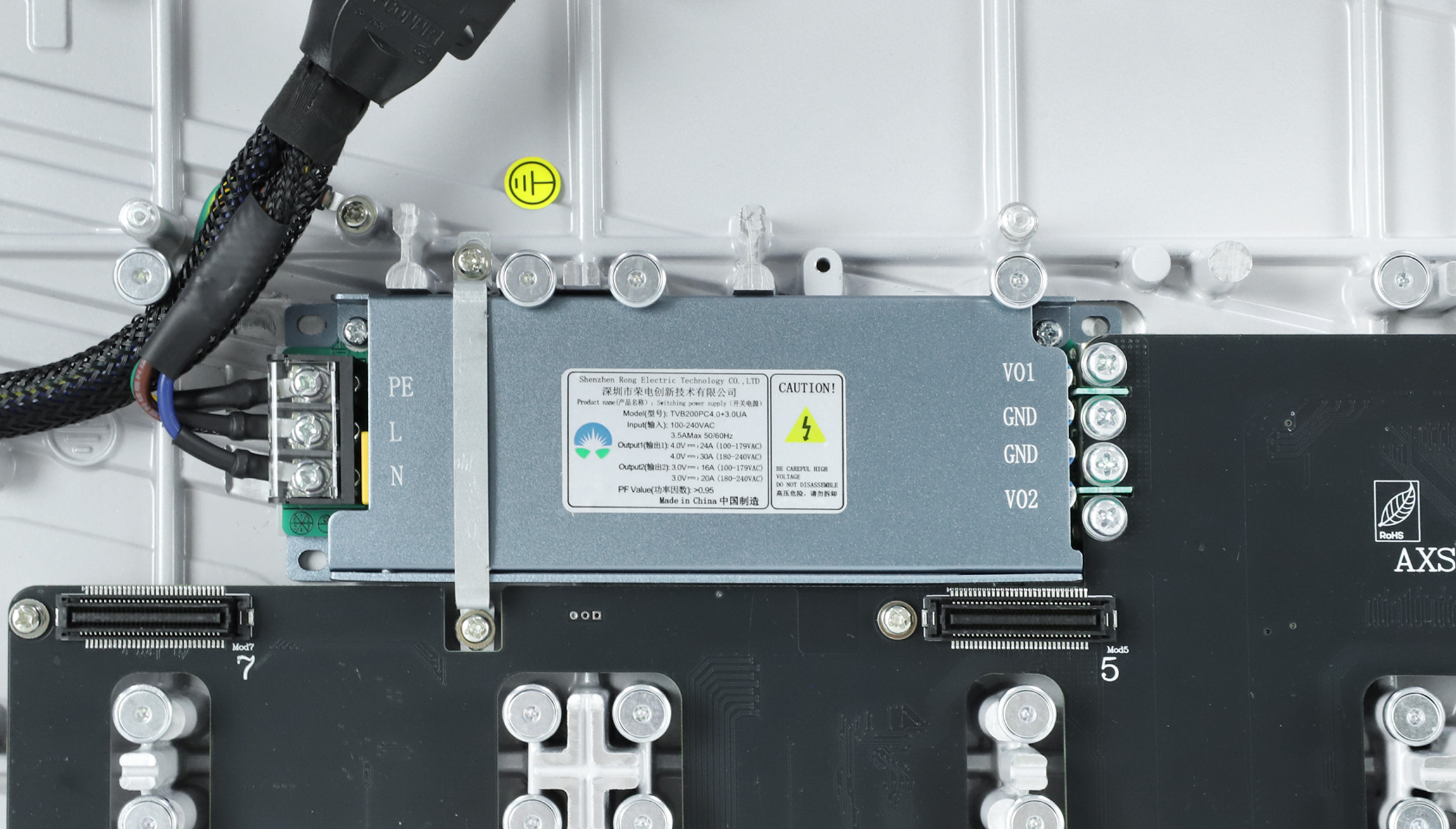

- Cable-free HUB connection between LED modules and cabinet

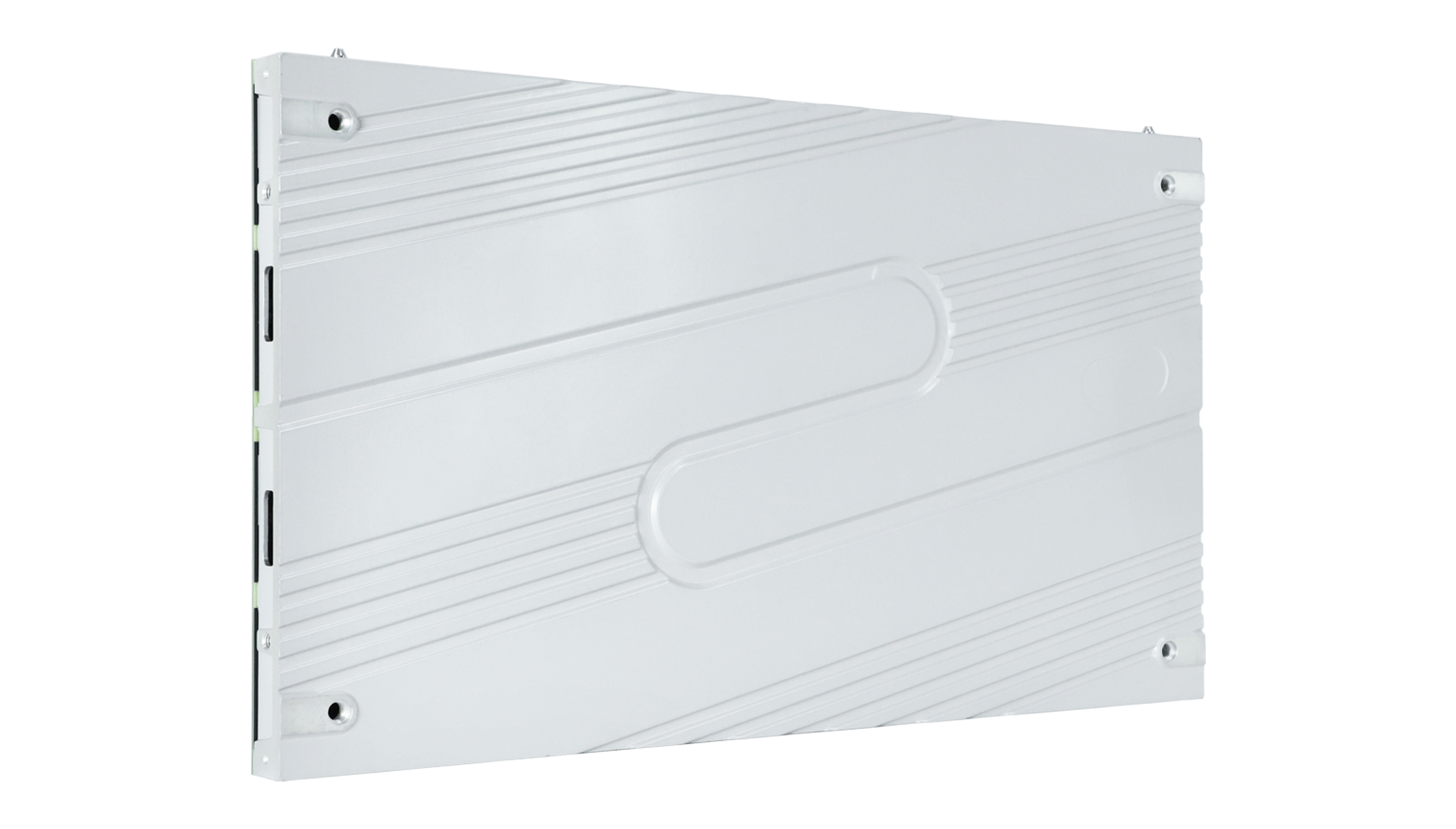

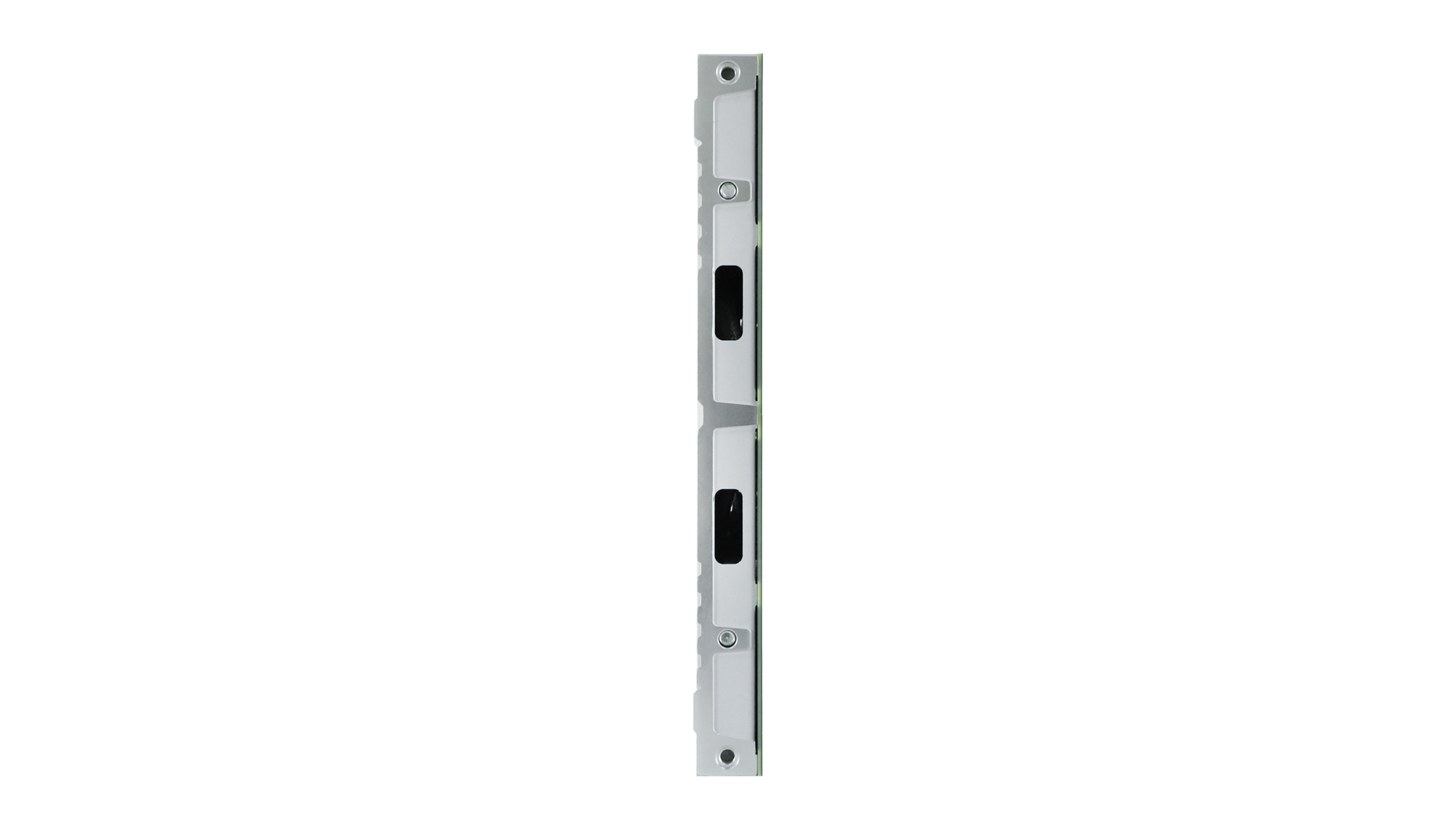

- Ultra-thin 30mm die-cast aluminum cabinet
- High refresh rate of ≥3840Hz and 16-bit gray scale for smooth visual effects
- Wide viewing angle of 160° (H) / 160° (V)
- Multiple mounting options including wall mounting and stacking installation
المواصفات الفنية
| البند | القيمة |
|---|---|
| Cabinet Dimensions | 600 * 337.5 * 30 mm |
| Module Size | 150 * 168.75 mm |
| Module Quantity in Cabinet | 4 (L) * 2 (H) |
| Cabinet Material | Die-cast aluminum |
| Cabinet Weight | 4.1 kg |
| Protection Grade | IP31 |
| Brightness | 600 cd/m² |
| Viewing Angle | 160°(H) / 160°(V) |
| Screen Refresh Frequency | >= 3840 Hz |
| Frame Frequency | >= 60 Hz |
| Gray Grade | 16 bits |
| Display Color | 4.4 trillion colors |
| Max Power Consumption | 500 W/m² |
| Avg Power Consumption | 165-260 W/m² |
| Operation Power | AC100-240V 50-60Hz Switchable |
| Color Temperature | 6500 K (adjustable) |
| Brightness Adjustment | 100 grades by software or automatically by sensor |
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI |
| Control Distance | 100M (Ethernet cable) / 20KM (Optical fiber cable) |
| Supported VGA Mode | 800600, 1024768, 12801024, 16001200 |
| Working Temperature | -20°C ~ +50°C |
| Storage Temperature | -20°C ~ +50°C |
| Working Humidity | 30%~75% RH |
| Out-of-Control Pixel Rate | <= 0.01% |
المواصفات الفنية مصدرها الشركة المصنّعة وقد تتغير دون إشعار.
أقسام فنية إضافية
Environmental
| البند | القيمة |
|---|---|
| Working Temperature | -20°C ~ +50°C |
| Storage Temperature | -20°C ~ +50°C |
| Working Humidity | 30%~75% RH |
| Out-of-Control Pixel Rate | <= 0.01% |
Power & Control
| البند | القيمة |
|---|---|
| Operation Power | AC100-240V 50-60Hz Switchable |
| Max Power Consumption | 500 W/m² |
| Avg Power Consumption | 165-260 W/m² |
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI |
| Control Distance | 100M (Ethernet cable) / 20KM (Optical fiber cable) |
| Supported VGA Mode | 800600, 1024768, 12801024, 16001200 |
Display & Optical
| البند | القيمة |
|---|---|
| Cabinet Dimensions | 600 * 337.5 * 30 mm |
| Module Size | 150 * 168.75 mm |
| Pixel Pitch Options | 0.62mm / 0.78mm / 0.93mm / 1.25mm / 1.56mm / 1.87mm |
| Pixel Configuration | Flip-chip COB |
| Brightness | 600 cd/m² |
| Viewing Angle | 160°(H) / 160°(V) |
| Screen Refresh Frequency | >= 3840 Hz |
| Frame Frequency | >= 60 Hz |
| Gray Grade | 16 bits |
| Display Color | 4.4 trillion colors |
| Color Temperature | 6500 K (adjustable) |
Mechanical & Structure
| البند | القيمة |
|---|---|
| Cabinet Material | Die-cast aluminum |
| Cabinet Weight | 4.1 kg |
| Module Quantity in Cabinet | 4 (L) * 2 (H) |
| Protection Grade | IP31 |
| Maintenance Access | Full Front Service |
الاستخدامات المناسبة
Control & Command Centers
Corporate Conference Rooms & Boardrooms
Exhibition Halls & Showrooms
Broadcasting Studios
Commercial & Retail Displays
