USS640F2 640x480mm HD Indoor LED Screen

العلامة: الموديل: USS640F2

USS640F2 is a high-definition indoor LED screen cabinet measuring 640x480mm with an exquisite 4:3 golden ratio design. It utilizes die-cast aluminum construction with an upgraded adapter plate structure to keep interior wiring neat and orderly. With full front service support, high contrast display capabilities, and a high refresh rate of 3840Hz, it easily achieves standard 2K, 4K, and 8K visual solutions while saving installation space.

أهم الميزات

Exquisite and simple 4:3 golden ratio design

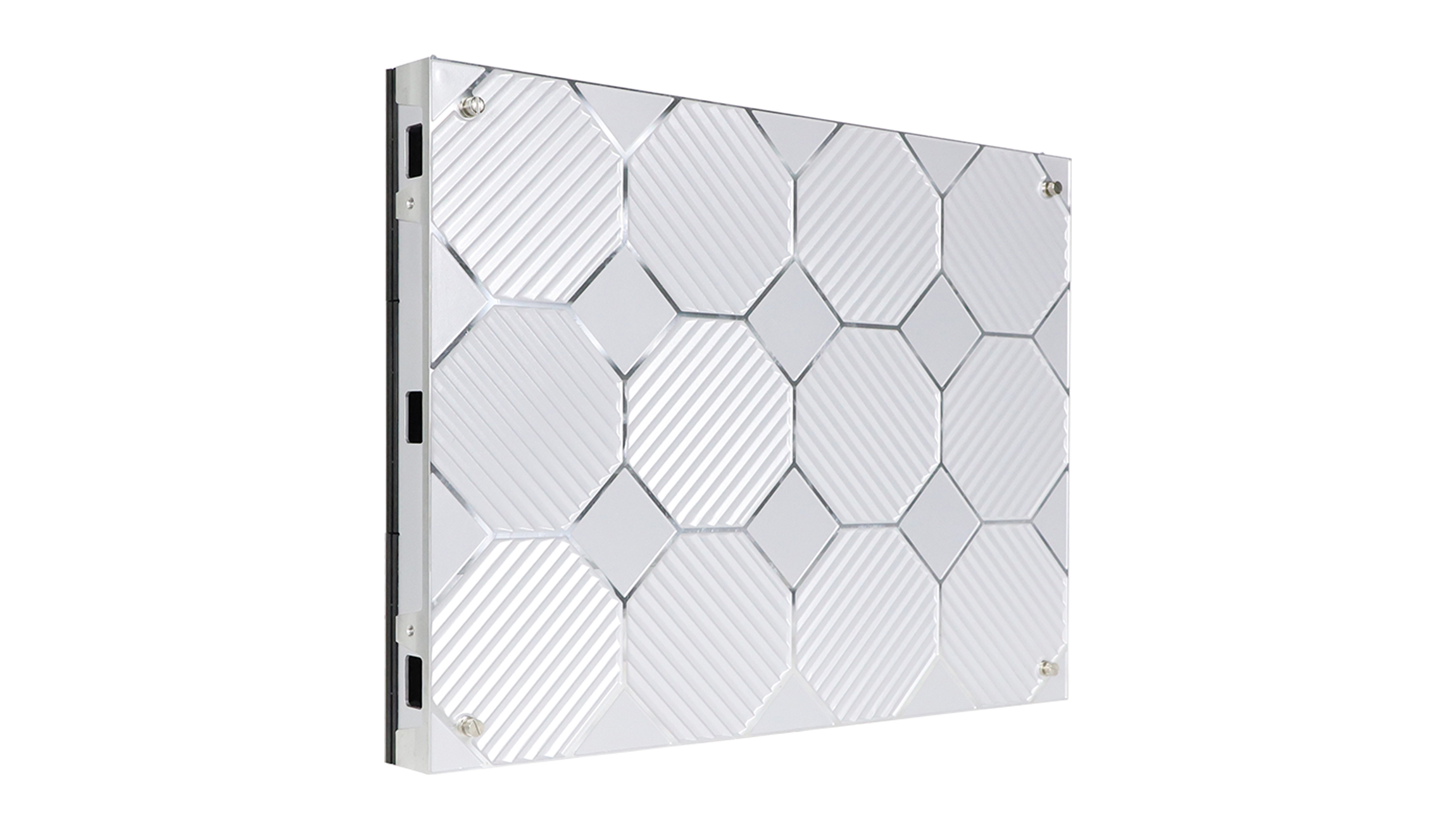

Lightweight die-cast aluminum cabinet
Realizes standard 2K, 4K, and 8K resolutions
Full front service design saves installation space
High contrast with 3840Hz refresh rate

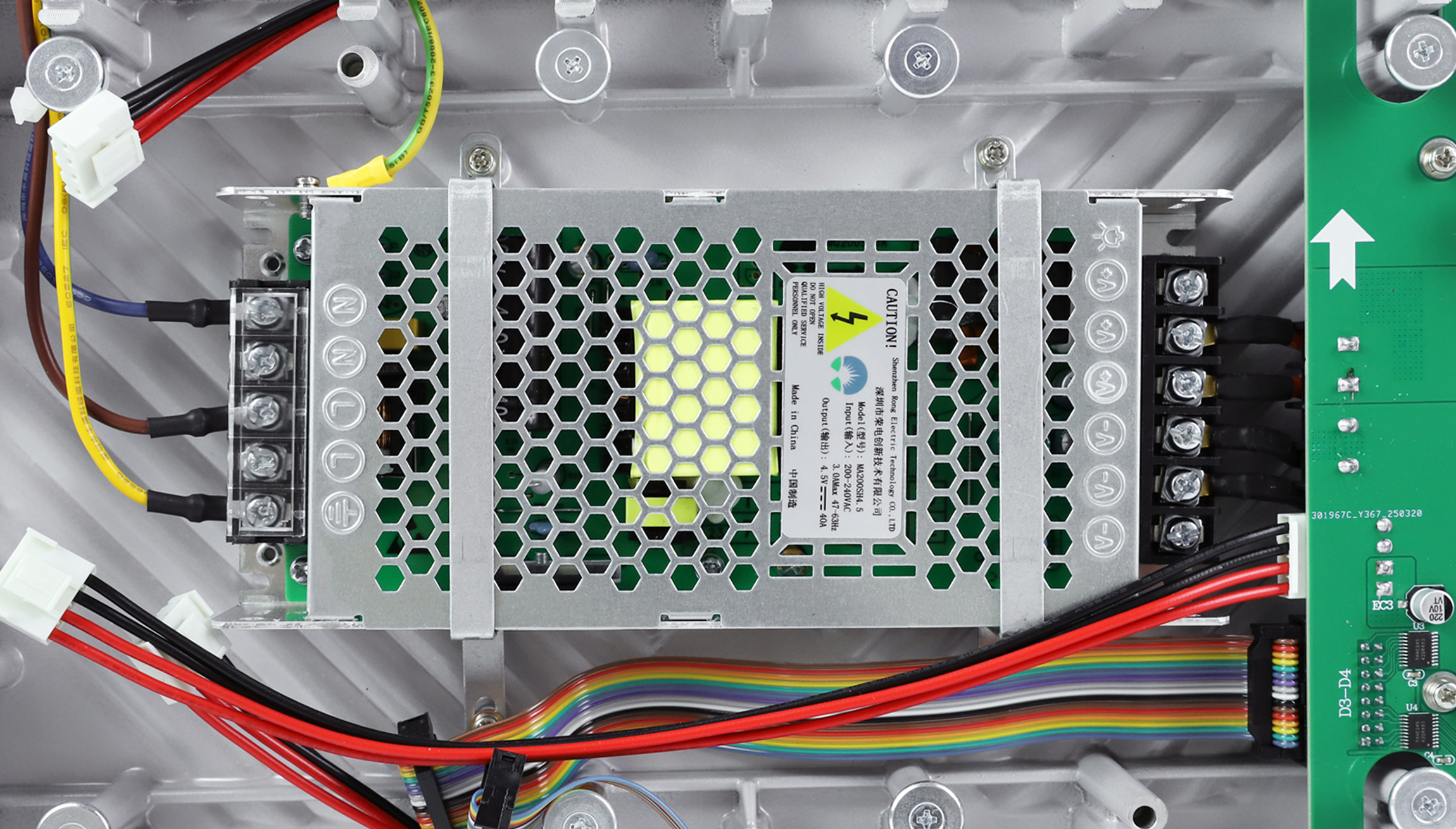

Upgraded adapter plate design for orderly internal structure
Supports both Stacking and Wall installation methods
IP31 protection grade

استفسر عن المنتج اطلب عرضاً

المواصفات الفنية

البند	القيمة
Cabinet Dimension	640 * 480 * 60 mm
Cabinet Material	Die-cast aluminum
Cabinet Weight	7.5 kg
Protection Grade	IP31
Module Size	320 * 160 mm
Module Mask	Pure black mask
Module Quantity in Cabinet	2(L) * 3(H)
Screen Refresh Frequency	>= 3840 Hz
Frame Frequency	>= 60 Hz
Gray Grade	14 bits
Viewing Angle	140°(H) / 140°(V)
Display Color	4.4 trillion colors
Operation Power	AC100-240V 50-60Hz Switchable
Input Signal	Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance	100M (Ethernet) / 20KM (Optical fiber)
Color Temperature	2000-9500 adjustable
Working Temperature	-10°C ~ +60°C
Storage Temperature	-30°C ~ +70°C
Working Humidity	10%-90% RH
Out-of-Control Pixel Rate	<= 0.01%

المواصفات الفنية مصدرها الشركة المصنّعة وقد تتغير دون إشعار.

أقسام فنية إضافية

Mechanical & Display

البند	القيمة
Cabinet Dimension	640 * 480 * 60 mm
Cabinet Material	Die-cast aluminum
Cabinet Weight	7.5 kg
Module Size	320 * 160 mm
Module Mask	Pure black mask
Viewing Angle	140°(H) / 140°(V)
Display Color	4.4 trillion colors

Performance & Signal

البند	القيمة
Screen Refresh Frequency	>= 3840 Hz
Frame Frequency	>= 60 Hz
Gray Grade	14 bits
Input Signal	Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance	100M (Ethernet cable) / 20KM (Optical fiber cable)
Color Temperature	2000-9500 adjustable

Environmental & Electrical

البند	القيمة
Protection Grade	IP31
Operation Power	AC100-240V 50-60Hz Switchable
Working Temperature	-10°C ~ +60°C
Storage Temperature	-30°C ~ +70°C
Working Humidity	10%-90% RH
Out-of-Control Pixel Rate	<= 0.01%
