USS1920iP5 Indoor Foldable Poster LED Screen

العلامة: الموديل: USS1920iP5

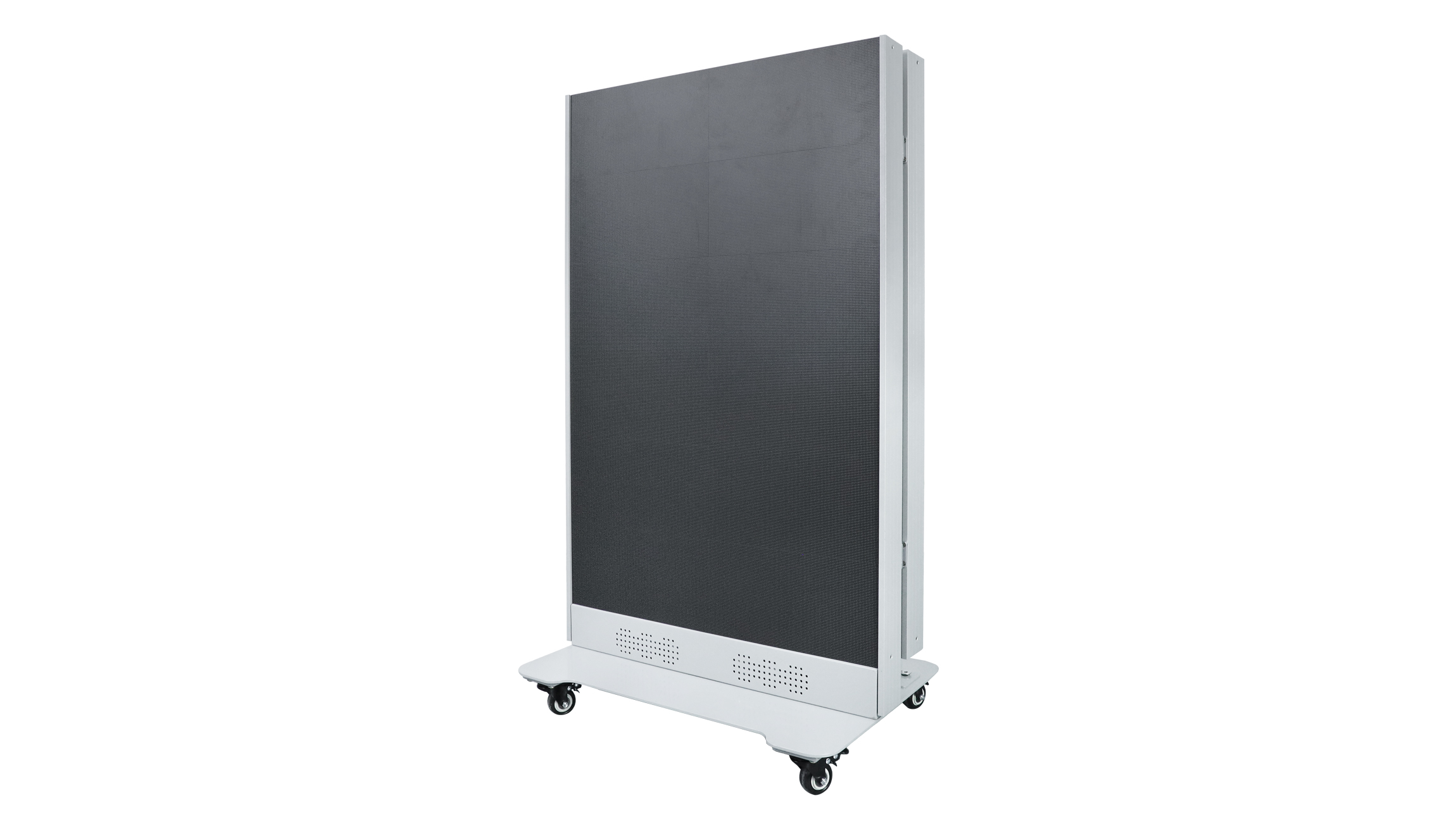

USS1920iP5 Series is an innovative indoor foldable poster LED screen with a 640x1920mm display footprint. Designed with a magnetic foldable frame, it allows creative double-sided display setups and multi-screen seamless splicing via quick link locks. Powered by high-protection GOB or Flip-Chip COB LED modules, it delivers high contrast, a 3840Hz refresh rate, and full front-serviceability. It includes integrated speakers for direct audio playback, rich connectivity (HDMI, USB 3.0, Wi-Fi, Ethernet, SIM slot), and smart cloud content management controllable via smartphones, tablets, or PCs. The base features 4 wheels for effortless movement and single-person portability.

أهم الميزات

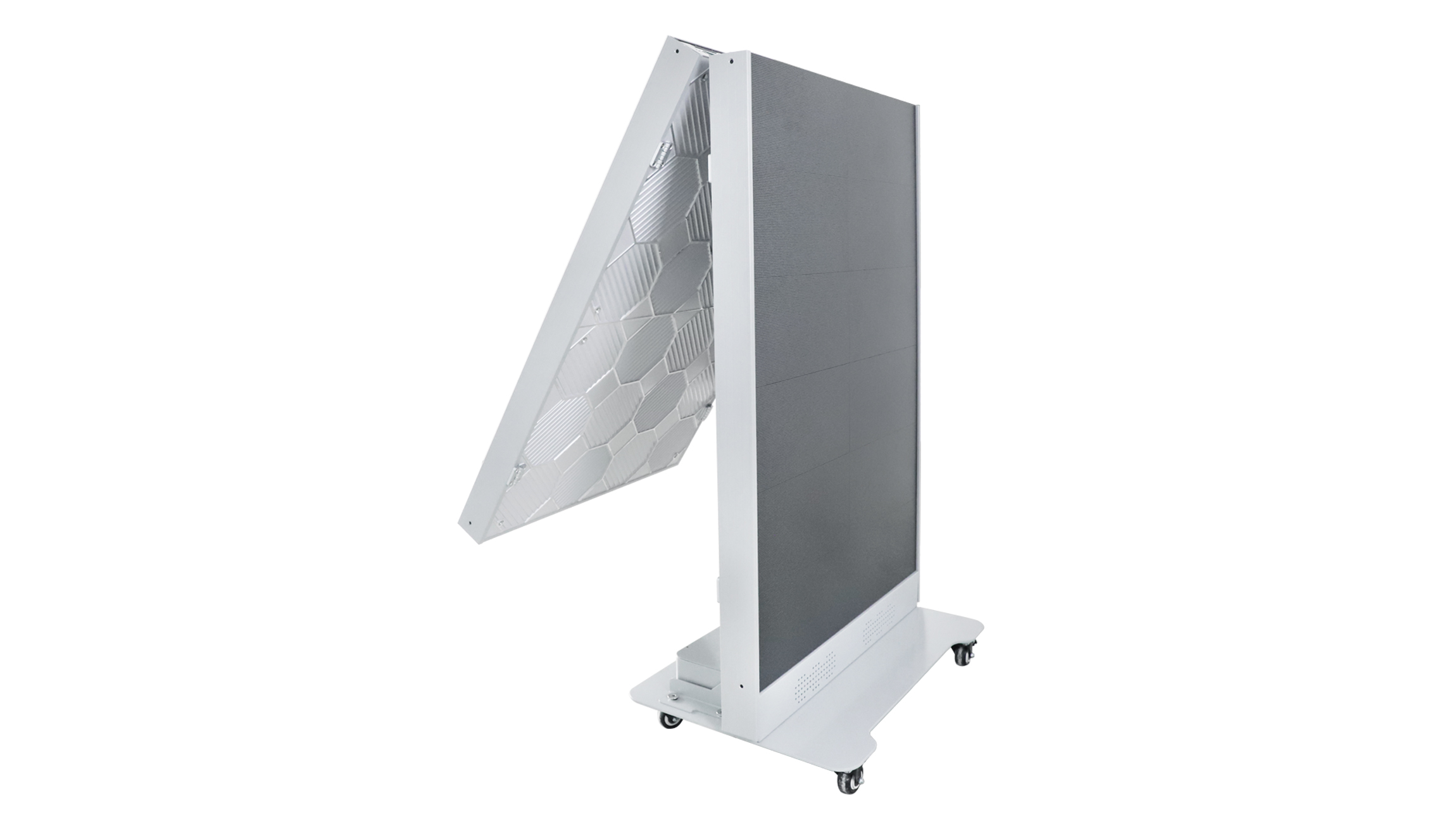

Creative double-sided folding design with magnetic foldable frame

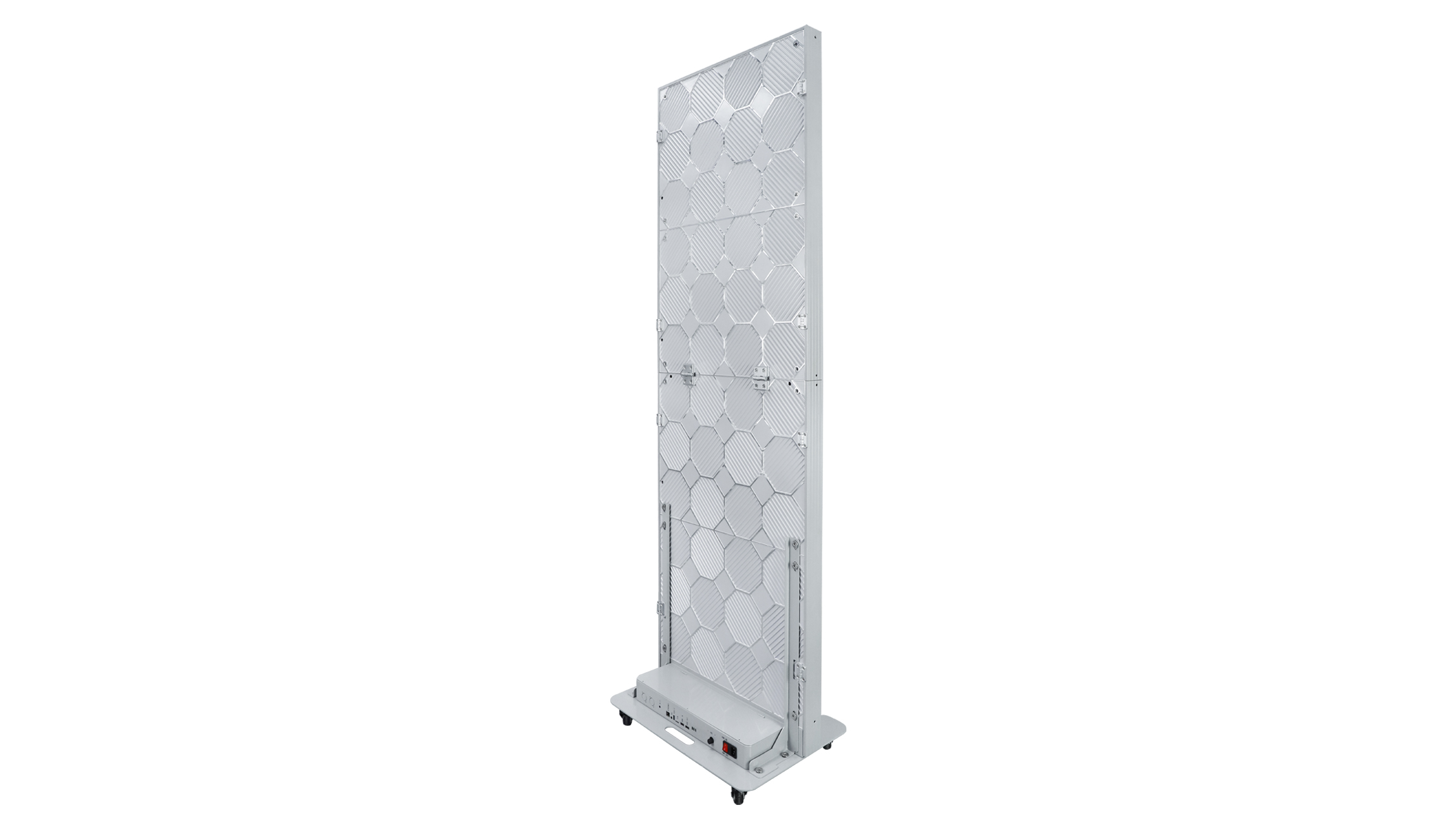

Full front service design for easy maintenance
High-protection GOB and Flip-Chip COB LED module technology options

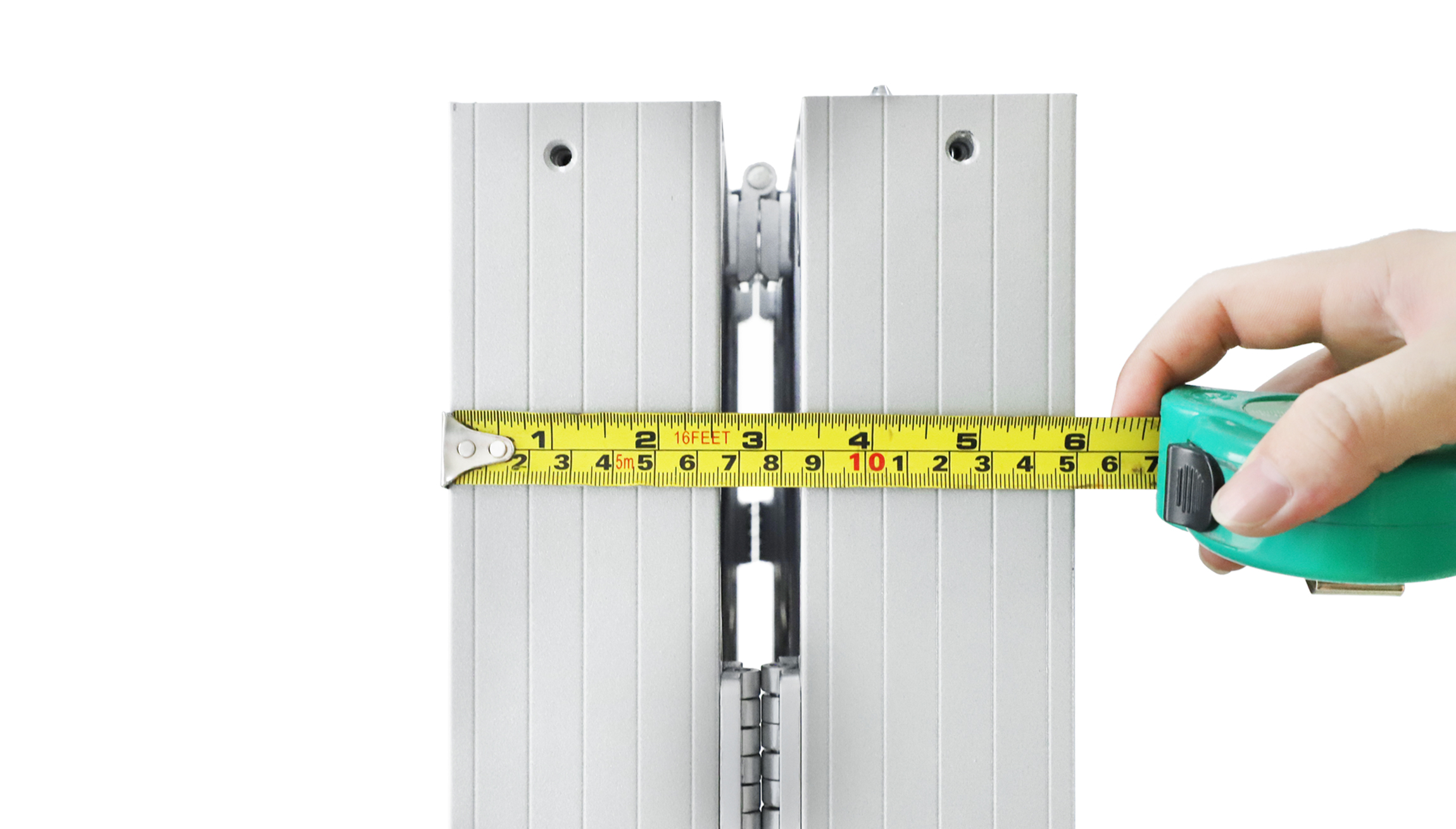

Multi-screen seamless splicing supported by built-in link locks
Smart cloud management via phone, tablet, or PC
Built-in speakers for direct audiovisual playback
Rich connectivity options: HDMI, USB 3.0, Wi-Fi, SIM card slot, and Ethernet
3840Hz high refresh rate and high contrast display performance
Base equipped with 4 wheels for easy single-person mobility
Single-person folding and compact flight case packaging

استفسر عن المنتج اطلب عرضاً

المواصفات الفنية

البند	القيمة
Display Footprint (LHD)	640 * 1920 * 60 mm
Pixel Pitch Options (GOB)	1.25mm / 1.53mm / 1.86mm / 2mm / 2.5mm
Pixel Pitch Options (COB)	1.25mm / 1.53mm / 1.86mm
Module Size (LH)	320 * 160 mm
Cabinet Material	Die-cast Aluminum
Cabinet Weight	55 KG
Protection Grade	IP31
Brightness Range	600 - 800 cd/m²
Screen Refresh Frequency	>= 3840 Hz
Frame Frequency	>= 60 Hz
Gray Grade	14 bits
Display Color	4.4 trillion colors
Viewing Angle	140° (H) / 140° (V)
Max Power Consumption	439 - 580 W/m²
Average Power Consumption	150 - 195 W/m²
Operation Power	AC100-240V 50-60Hz Switchable
Brightness Adjustment	100 grades by software or automatically by sensor
Input Signal	Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance	100M (Ethernet cable) / 20KM (Optical fiber cable)
Supported VGA Mode	800600, 1024768, 12801024, 16001200
Color Temperature	2000K - 9500K adjustable
Working Temperature	-10°C ~ +60°C
Storage Temperature	-30°C ~ +70°C
Working Humidity	10% ~ 90% RH
Out-of-Control Pixel Rate	<= 0.01%

المواصفات الفنية مصدرها الشركة المصنّعة وقد تتغير دون إشعار.

أقسام فنية إضافية

Environmental

البند	القيمة
Working Temperature	-10°C ~ +60°C
Storage Temperature	-30°C ~ +70°C
Working Humidity	10% ~ 90% RH
Out-of-Control Pixel Rate	<= 0.01%

Display & Visual

البند	القيمة
Pixel Pitch Options (GOB)	1.25mm / 1.53mm / 1.86mm / 2mm / 2.5mm
Pixel Pitch Options (COB)	1.25mm / 1.53mm / 1.86mm
Module Size (LH)	320 * 160 mm
Screen Refresh Frequency	>= 3840 Hz
Frame Frequency	>= 60 Hz
Gray Grade	14 bits
Display Color	4.4 trillion colors
Viewing Angle	140° (H) / 140° (V)
Brightness	600 - 800 cd/m²
Color Temperature	2000K - 9500K adjustable
Brightness Adjustment	100 grades by software or auto sensor

Power & Connectivity

البند	القيمة
Operation Power	AC100-240V 50-60Hz Switchable
Max Power Consumption	439 - 580 W/m²
Average Power Consumption	150 - 195 W/m²
Interfaces	HDMI, USB 3.0, Wi-Fi, SIM Card Slot, Ethernet, Audio Out
Input Signal	Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance	100M (Ethernet cable) / 20KM (Optical fiber cable)

Mechanical & Physical

البند	القيمة
Display Dimensions (LHD)	640 * 1920 * 60 mm
Display Material	Die-cast Aluminum
Display Weight	55 KG
Protection Grade	IP31
Packaging 1pc/case	790 * 600 * 1364 mm (104 KG)
Packaging 2pcs/case	790 * 1177 * 1364 mm (181 KG)
