1 / 4USS-FD Indoor Front Desk LED Display
USS-FD Series is an all-in-one indoor front desk LED display designed for versatile reception, business, and entertainment environments. Built with flexible 320x160mm GOB LED modules, it delivers robust surface protection alongside easy front-service maintenance. Featuring a plug-and-play design supporting Wi-Fi, USB, and HDMI inputs, this unit combines sleek reception furniture with dynamic digital display technology. It includes multiple drawers and cabinets for storage, customizable power sockets, and 360-degree bottom wheels for effort-free mobility.
أهم الميزات
- Easy plug and play operation
- Quick magnetic front service design

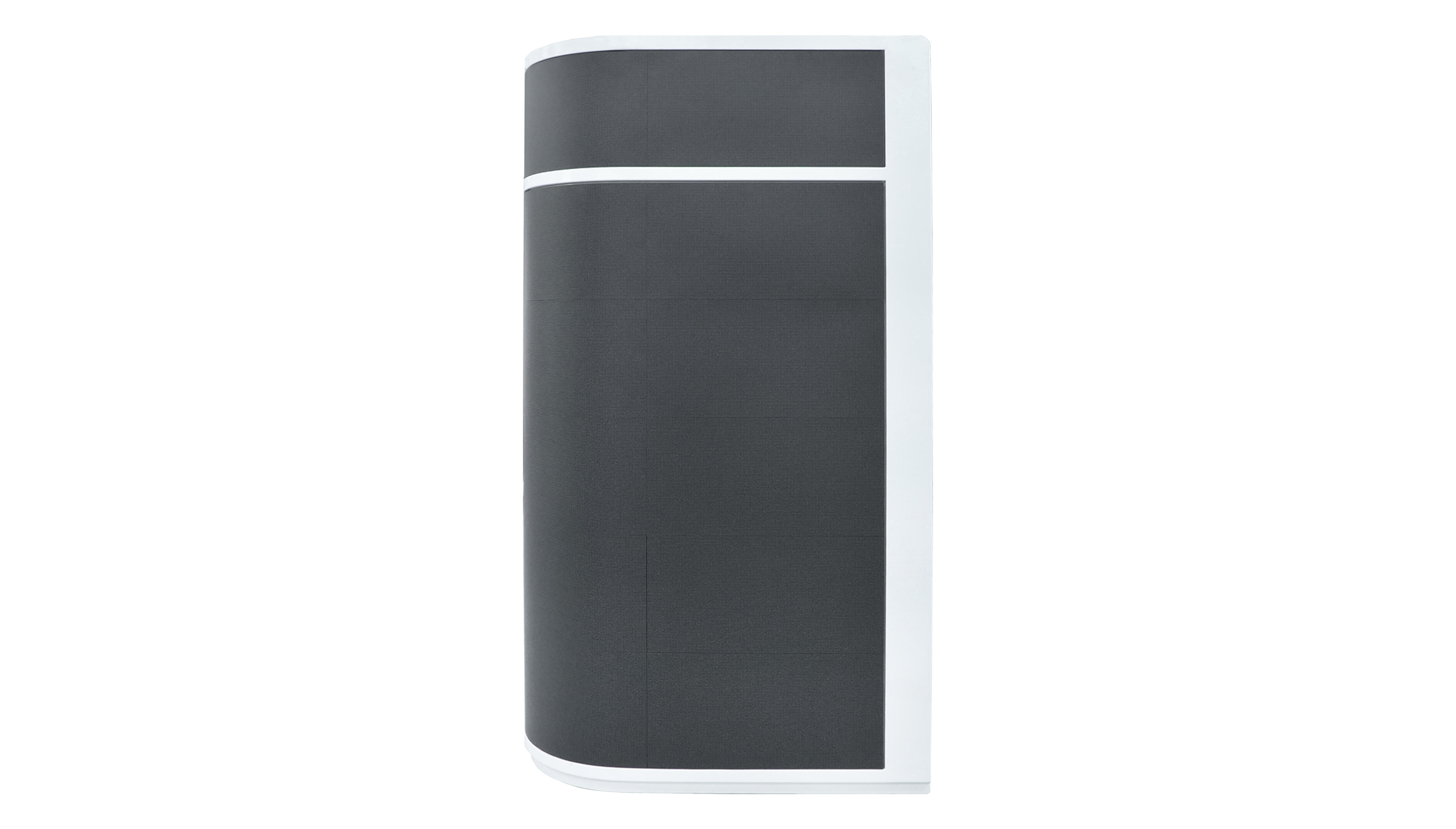

- Flexible GOB LED module (320x160mm) with surface protection

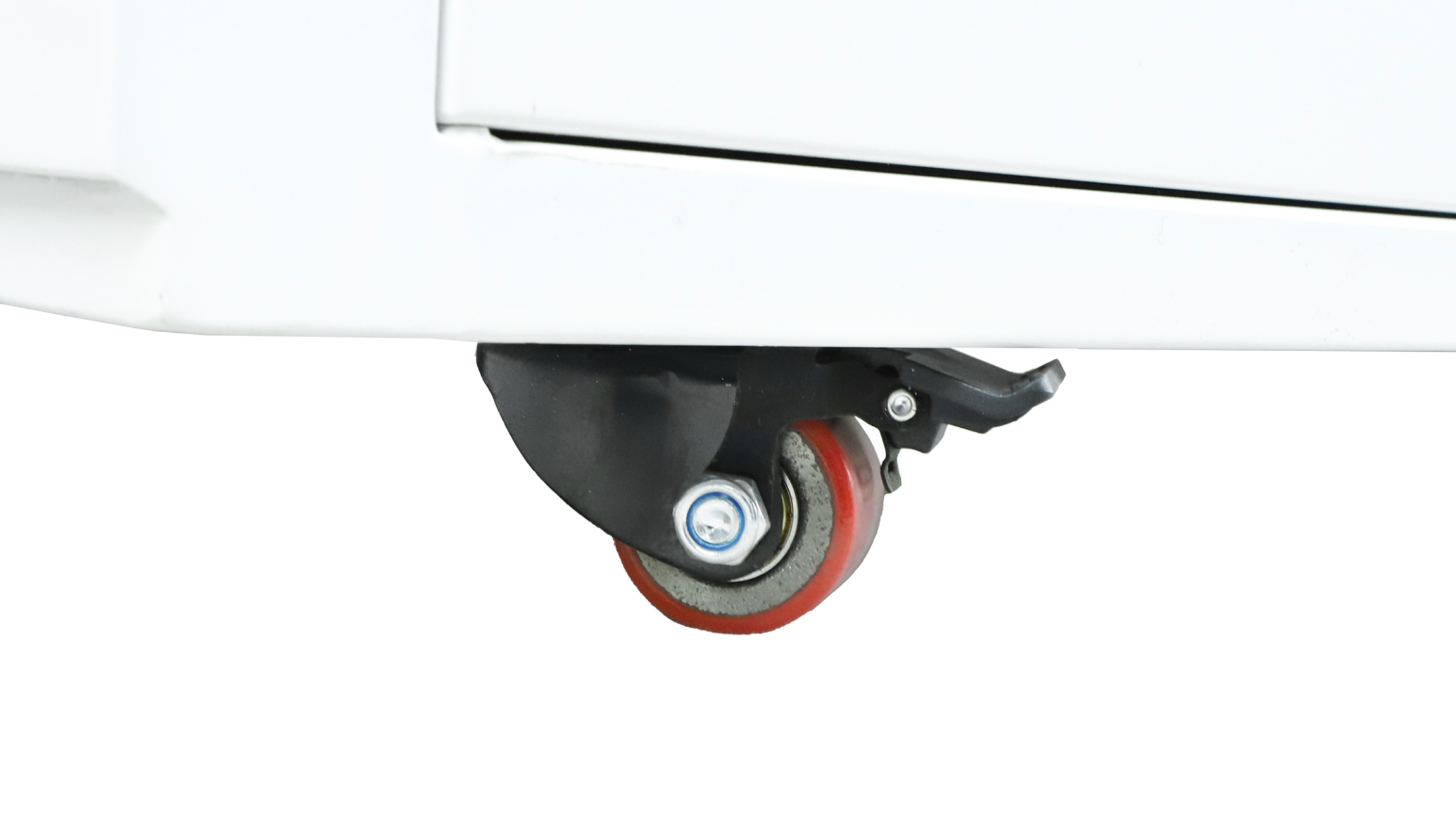

- 360-degree wheels for easy movement and mobility

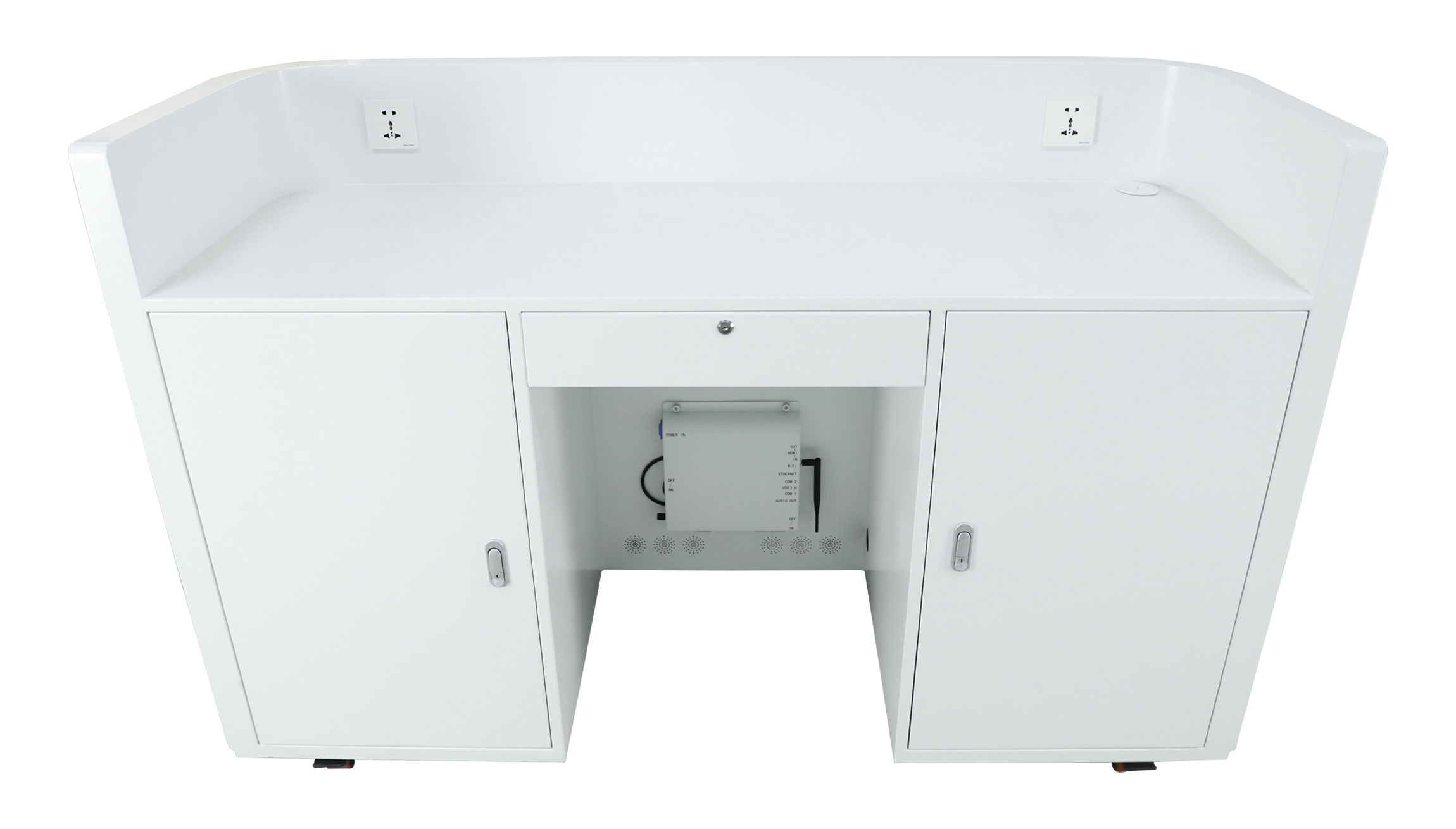

- Integrated storage drawers and cabinets
- Customizable built-in power sockets (US, EU, UK, CN, etc.)
- Multiple connectivity options: Wi-Fi, USB, HDMI, Ethernet
- Available in two design styles (Business Model and Entertainment Model)
- Supports optional integrated speakers
المواصفات الفنية
| البند | القيمة |
|---|---|
| Pixel Pitch Options | 1.53mm / 1.86mm / 2.5mm (GOB) |
| Module Size (LH) | 320 * 160 mm |
| Display Size Options (LH) | 1920960 / 2240960 / 2560960 mm |
| Cabinet Dimensions (LDH) | 10655851100 / 13605851100 / 16755851100 mm |
| Cabinet Material | Iron |
| Cabinet Weight Options | 97 KG / 115 KG / 130 KG |
| Protection Grade | IP43 |
| Brightness | 600 cd/m² |
| Screen Refresh Frequency | >= 3840 Hz |
| Frame Frequency | >= 60 Hz |
| Gray Grade | 12-16 bits |
| Display Color | 4.4 trillion colors |
| Viewing Angle | 140° |
| Max Power Consumption | 1200 W/m² |
| Average Power Consumption | 500 W/m² |
| Operation Power | AC110-220V 50-60Hz Switchable |
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI |
| Control Distance | 100M (Ethernet cable) / 20KM (Optical fiber cable) |
| Supported VGA Mode | 800600, 1024768, 12801024, 16001200 |
| Color Temperature | 10-level adjustable |
| Working Temperature | -20°C ~ +50°C |
| Storage Temperature | -20°C ~ +60°C |
| Working Humidity | 10% ~ 90% RH |
| Out-of-Control Pixel Rate | <= 0.01% |
المواصفات الفنية مصدرها الشركة المصنّعة وقد تتغير دون إشعار.
أقسام فنية إضافية
Environmental
| البند | القيمة |
|---|---|
| Working Temperature | -20°C ~ +50°C |
| Storage Temperature | -20°C ~ +60°C |
| Working Humidity | 10% ~ 90% RH |
| Out-of-Control Pixel Rate | <= 0.01% |
Display & Visual
| البند | القيمة |
|---|---|
| Pixel Pitch Options | 1.53mm / 1.86mm / 2.5mm (GOB) |
| Module Size (LH) | 320 * 160 mm |
| Screen Refresh Frequency | >= 3840 Hz |
| Frame Frequency | >= 60 Hz |
| Gray Grade | 12-16 bits |
| Display Color | 4.4 trillion colors |
| Viewing Angle | 140° |
| Brightness | 600 cd/m² |
| Color Temperature | 10-level adjustable |
Power & Connectivity
| البند | القيمة |
|---|---|
| Operation Power | AC110-220V 50-60Hz Switchable |
| Max Power Consumption | 1200 W/m² |
| Average Power Consumption | 500 W/m² |
| Interfaces | HDMI, USB 3.0, Wi-Fi, Ethernet, Audio Out, COM Ports |
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI |
| Control Distance | 100M (Ethernet cable) / 20KM (Optical fiber cable) |
Mechanical & Physical
| البند | القيمة |
|---|---|
| Cabinet Dimensions (LDH) | 10655851100 / 13605851100 / 16755851100 mm |
| Cabinet Material | Iron |
| Cabinet Weight Options | 97 KG / 115 KG / 130 KG |
| Protection Grade | IP43 |
| Packaging | 1 pc / Flight Case (Up to 19307101320 mm) |
الاستخدامات المناسبة
Hotel Reception Desks
Corporate Lobbies & Front Desks
Retail Outlets & Showrooms
Entertainment Venues & Clubs
Exhibition Booths & Event Counters
هل هذا المنتج مناسب لك؟
إذا كنت غير متأكد من ملاءمة هذا المنتج لموقعك، تواصل معنا وسنساعدك على تحديد احتياجك واختيار الحل الأنسب لك.
اطلب استشارة
