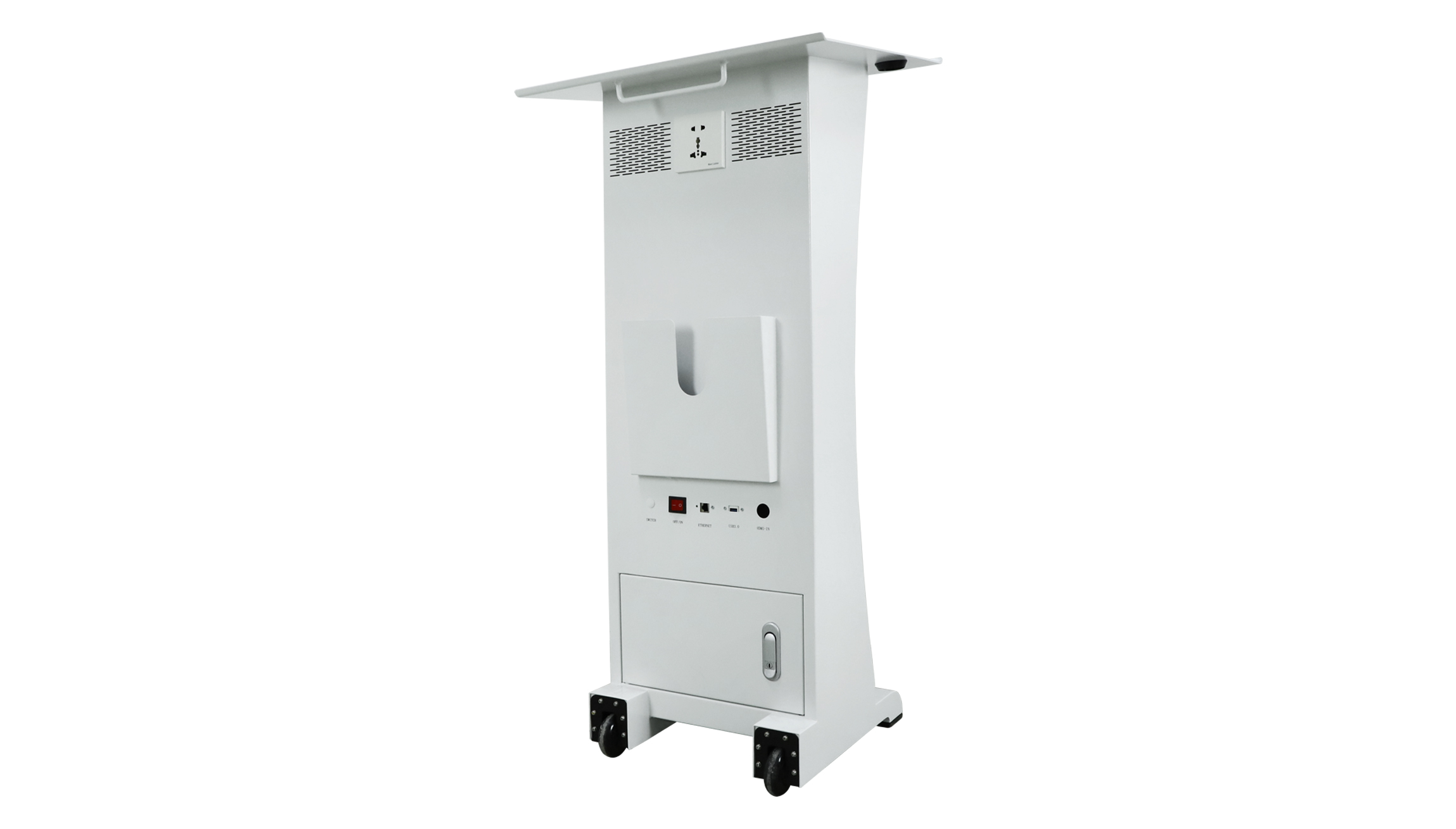

1 / 3USS-PD Indoor GOB Podium LED Screen
USS-PD Series is a sleek and compact indoor GOB podium LED screen designed for professional presentations, meetings, and auditoriums. Equipped with flexible 320x160mm GOB LED modules, it provides strong surface protection and quick front-service maintenance. The podium integrates a wide tabletop, concealed storage compartments, built-in power outlets, and multi-port connectivity for seamless plug-and-play operation. Built-in 360-degree wheels allow easy single-person movement and repositioning.
أهم الميزات
- Easy to use, plug and play setup
- Quick magnetic front service design
- Flexible GOB LED module (320x160mm) with surface protection
- Compact and stylish podium structure with wider tabletop
- Concealed storage compartment for equipment and accessories
- Integrated power outlets and multi-port connectivity panel

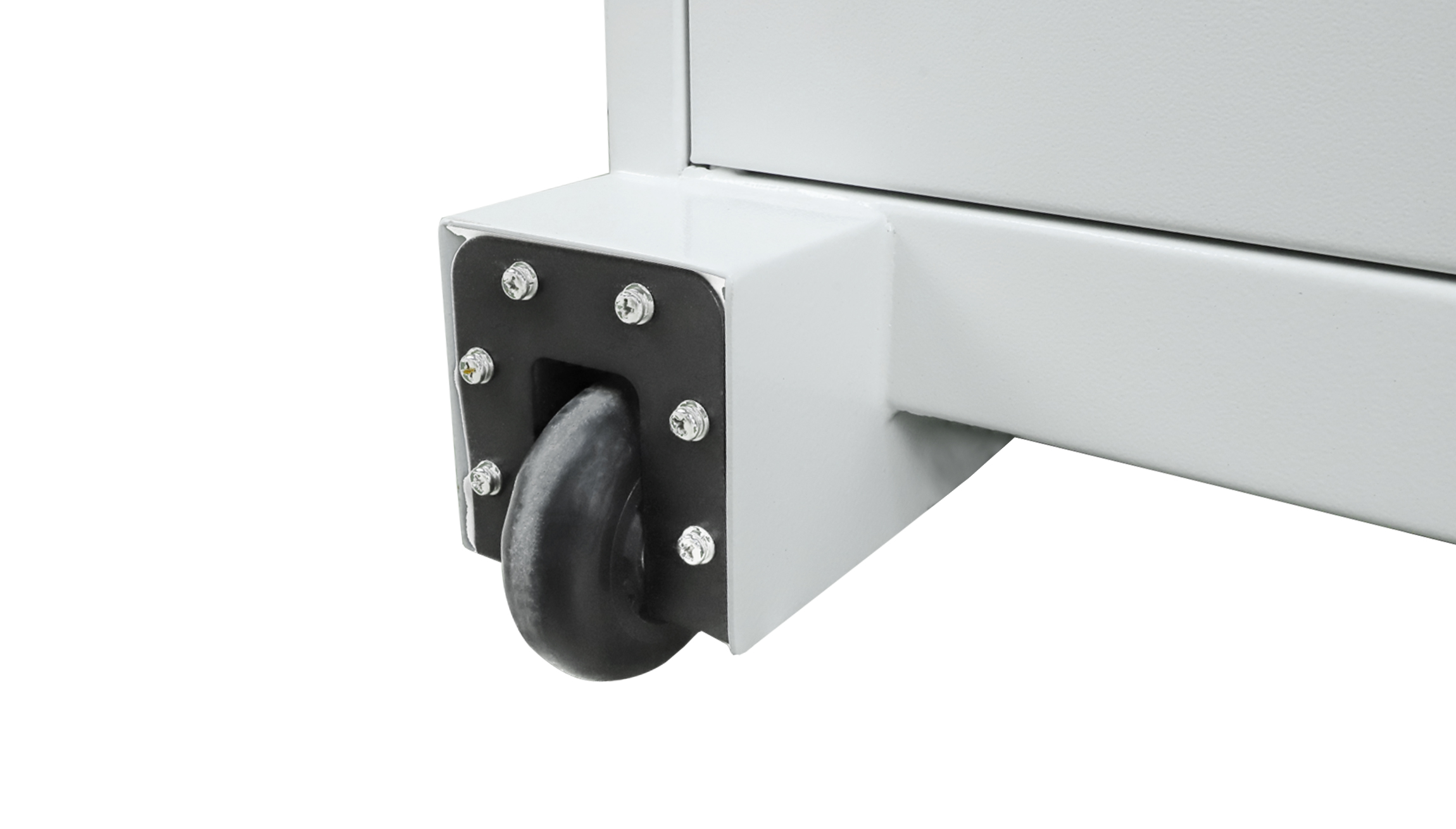

- 360-degree castor wheels for smooth movement
- Lightweight cabinet for easy single-person operation
- Two size options available (530mm and 650mm width)
المواصفات الفنية
| البند | القيمة |
|---|---|
| Pixel Pitch Options | 1.53mm / 1.86mm (GOB) |
| Module Size (LH) | 320 * 160 mm |
| Display Size Options (LH) | 320960 / 480960 mm |
| Cabinet Dimensions Options (LDH) | 5304601150 / 6504601150 mm |
| Cabinet Material | Iron |
| Cabinet Weight Options | 24 KG / 29.6 KG |
| Protection Grade | IP43 |
| Brightness | 600 cd/m² |
| Screen Refresh Frequency | >= 3840 Hz |
| Frame Frequency | >= 60 Hz |
| Gray Grade | 12-16 bits |
| Display Color | 4.4 trillion colors |
| Viewing Angle | 140° |
| Max Power Consumption | 1200 W/m² |
| Average Power Consumption | 500 W/m² |
| Operation Power | AC110-220V 50-60Hz Switchable |
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI |
| Control Distance | 100M (Ethernet cable) / 20KM (Optical fiber cable) |
| Supported VGA Mode | 800600, 1024768, 12801024, 16001200 |
| Color Temperature | 10-level adjustable |
| Working Temperature | -20°C ~ +50°C |
| Storage Temperature | -20°C ~ +60°C |
| Working Humidity | 10% ~ 90% RH |
| Out-of-Control Pixel Rate | <= 0.01% |
المواصفات الفنية مصدرها الشركة المصنّعة وقد تتغير دون إشعار.
أقسام فنية إضافية
Environmental
| البند | القيمة |
|---|---|
| Working Temperature | -20°C ~ +50°C |
| Storage Temperature | -20°C ~ +60°C |
| Working Humidity | 10% ~ 90% RH |
| Out-of-Control Pixel Rate | <= 0.01% |
Display & Visual
| البند | القيمة |
|---|---|
| Pixel Pitch Options | 1.53mm / 1.86mm (GOB) |
| Module Size (LH) | 320 * 160 mm |
| Screen Refresh Frequency | >= 3840 Hz |
| Frame Frequency | >= 60 Hz |
| Gray Grade | 12-16 bits |
| Display Color | 4.4 trillion colors |
| Viewing Angle | 140° |
| Brightness | 600 cd/m² |
| Color Temperature | 10-level adjustable |
Power & Connectivity
| البند | القيمة |
|---|---|
| Operation Power | AC110-220V 50-60Hz Switchable |
| Max Power Consumption | 1200 W/m² |
| Average Power Consumption | 500 W/m² |
| Interfaces | HDMI, USB, Ethernet, Power Switch, Power Outlets |
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI |
| Control Distance | 100M (Ethernet cable) / 20KM (Optical fiber cable) |
Mechanical & Physical
| البند | القيمة |
|---|---|
| Cabinet Dimensions (LDH) | 5304601150 / 6504601150 mm |
| Cabinet Material | Iron |
| Cabinet Weight Options | 24 KG / 29.6 KG |
| Protection Grade | IP43 |
| Packaging | 1 pc / Flight Case (Up to 1210730*680 mm, 76kg/92kg) |
الاستخدامات المناسبة
Conference Rooms & Meetings
Auditoriums & Lecture Halls
Churches & Houses of Worship
Product Launches & Keynote Presentations
Corporate Events & Press Conferences
