USS960F4 Outdoor Front Service LED Display

العلامة: الموديل: USS960F4

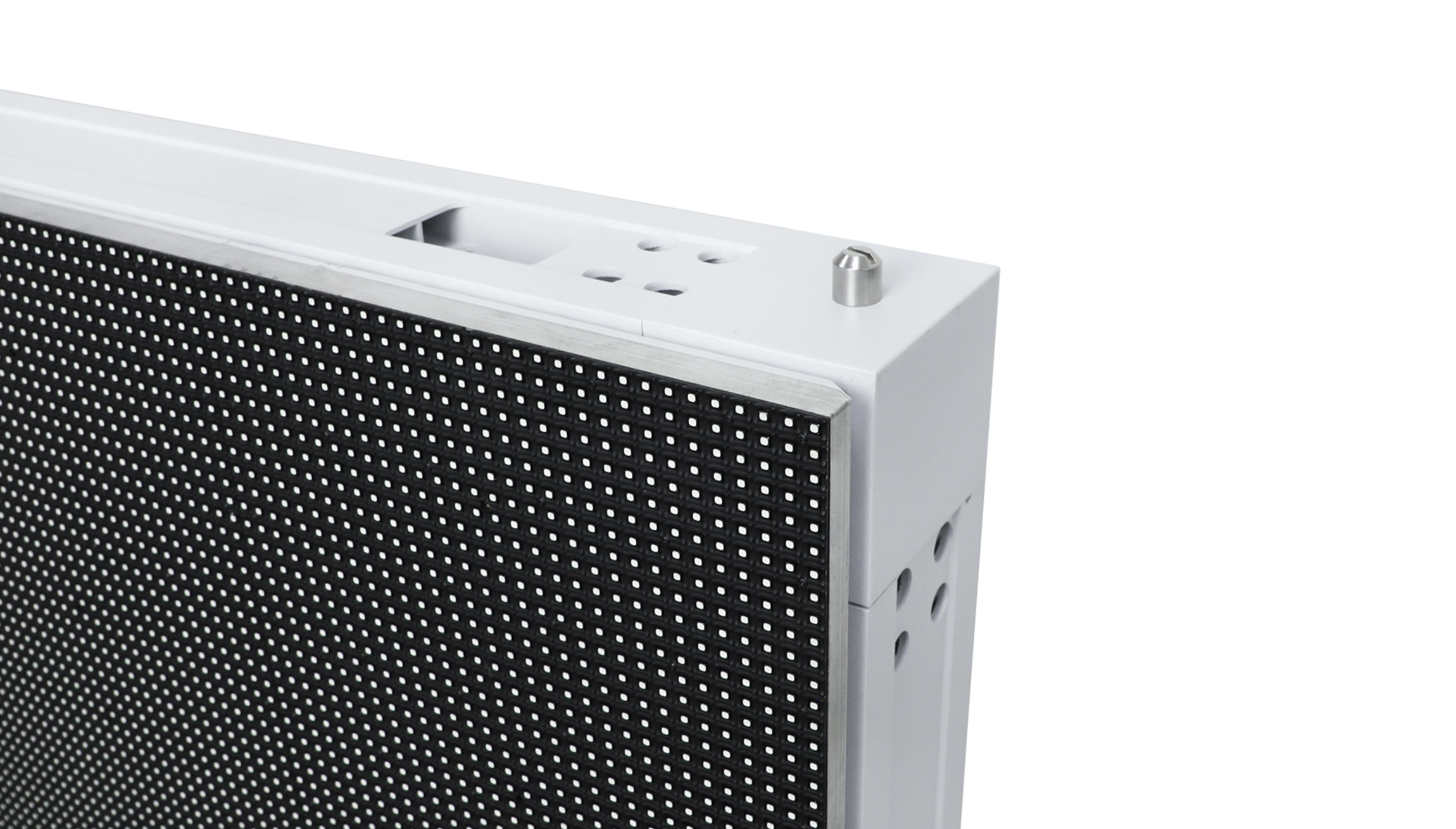

USS960F4 is a versatile outdoor front service LED display designed for high-impact outdoor advertising and billboard applications. Built with lightweight aluminum profile cabinets and offering IP65 protection against harsh environments, it provides dual service access (front and rear) to minimize maintenance costs. Delivering superb visuals with up to $6500\text{ cd/m}^2$ brightness and a $3840\text{Hz}$ refresh rate, it also supports optional $45^\circ$ mitered edges and $90^\circ$ curved cabinet configurations for immersive 3D display effects.

أهم الميزات

Dual service mode (front and rear maintenance) for easy servicing
Energy-saving design with fast heat dissipation
Lightweight aluminum profile cabinet structure
IP65 dustproof and waterproof rating for outdoor environments
Cable-free HUB connection for simplified operation
High brightness up to 6500 cd/m² and ≥3840Hz refresh rate
Optional 45° beveled-edge cabinet for seamless corner installations
Optional 90° arc curved cabinet for 3D display applications
Multiple cabinet sizes available (960x960mm, 1440x960mm, 1440x640mm)

استفسر عن المنتج اطلب عرضاً

المواصفات الفنية

البند	القيمة
Cabinet Dimensions (Standard)	960 * 960 * 80 mm
Alternative Cabinet Sizes	1440 * 960 mm / 1440 * 640 mm / 640 * 960 mm (Curved)
Module Size	480 * 320 mm (Standard) / 40 * 320 mm (Curved)
Cabinet Material	Aluminum (Standard) / Steel (Curved)
Cabinet Weight	28.3 kg (Standard) / 23.6 kg (Curved)
Protection Grade	IP65
Brightness	6000 - 6500 cd/m²
Viewing Angle	140°(H) / 140°(V)
Screen Refresh Frequency	>= 3840 Hz
Frame Frequency	>= 60 Hz
Gray Grade	14 bits
Display Color	4.4 trillion colors
Max Power Consumption	650 - 680 W/m²
Avg Power Consumption	220 - 240 W/m²
Operation Power	AC100-240V 50-60Hz Switchable
Color Temperature	5000-9300 K (adjustable)
Brightness Adjustment	100 grades by software or automatically by sensor
Input Signal	Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance	100M (Ethernet cable) / 20KM (Optical fiber cable)
Supported VGA Mode	800600, 1024768, 12801024, 16001200
Working Temperature	-20°C ~ +50°C
Storage Temperature	-40°C ~ +80°C
Working Humidity	10%~95% RH
Out-of-Control Pixel Rate	<= 0.01%

المواصفات الفنية مصدرها الشركة المصنّعة وقد تتغير دون إشعار.

أقسام فنية إضافية

Environmental

البند	القيمة
Working Temperature	-20°C ~ +50°C
Storage Temperature	-40°C ~ +80°C
Working Humidity	10%~95% RH
Out-of-Control Pixel Rate	<= 0.01%

Power & Control

البند	القيمة
Operation Power	AC100-240V 50-60Hz Switchable
Max Power Consumption	650 - 680 W/m²
Avg Power Consumption	220 - 240 W/m²
Input Signal	Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance	100M (Ethernet cable) / 20KM (Optical fiber cable)
Supported VGA Mode	800600, 1024768, 12801024, 16001200

Display & Optical

البند	القيمة

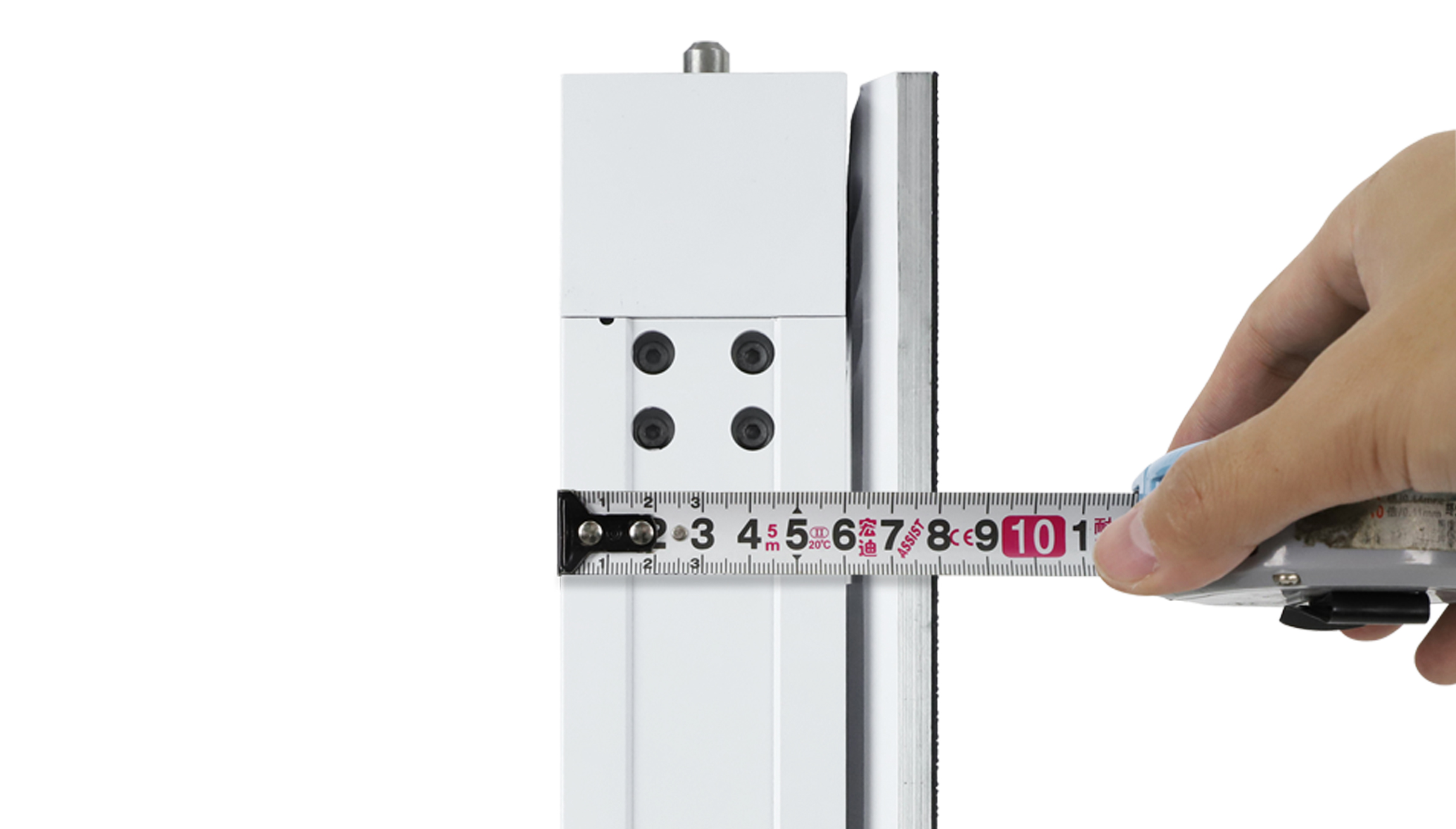

Standard Cabinet Dimensions	960 * 960 * 80 mm
Module Size	480 * 320 mm
Pixel Pitch Options	4.44mm / 5.71mm / 6.67mm / 8mm / 10mm
Pixel Configuration	SMD1921 / SMD2727
Brightness	6000 - 6500 cd/m²
Viewing Angle	140°(H) / 140°(V)
Screen Refresh Frequency	>= 3840 Hz
Frame Frequency	>= 60 Hz
Gray Grade	14 bits
Display Color	4.4 trillion colors
Color Temperature	5000-9300 K (adjustable)

Mechanical & Structure

البند	القيمة
Cabinet Material	Aluminum Profile (Standard) / Steel (Curved)
Cabinet Weight	28.3 kg (Standard) / 23.6 kg (Curved)

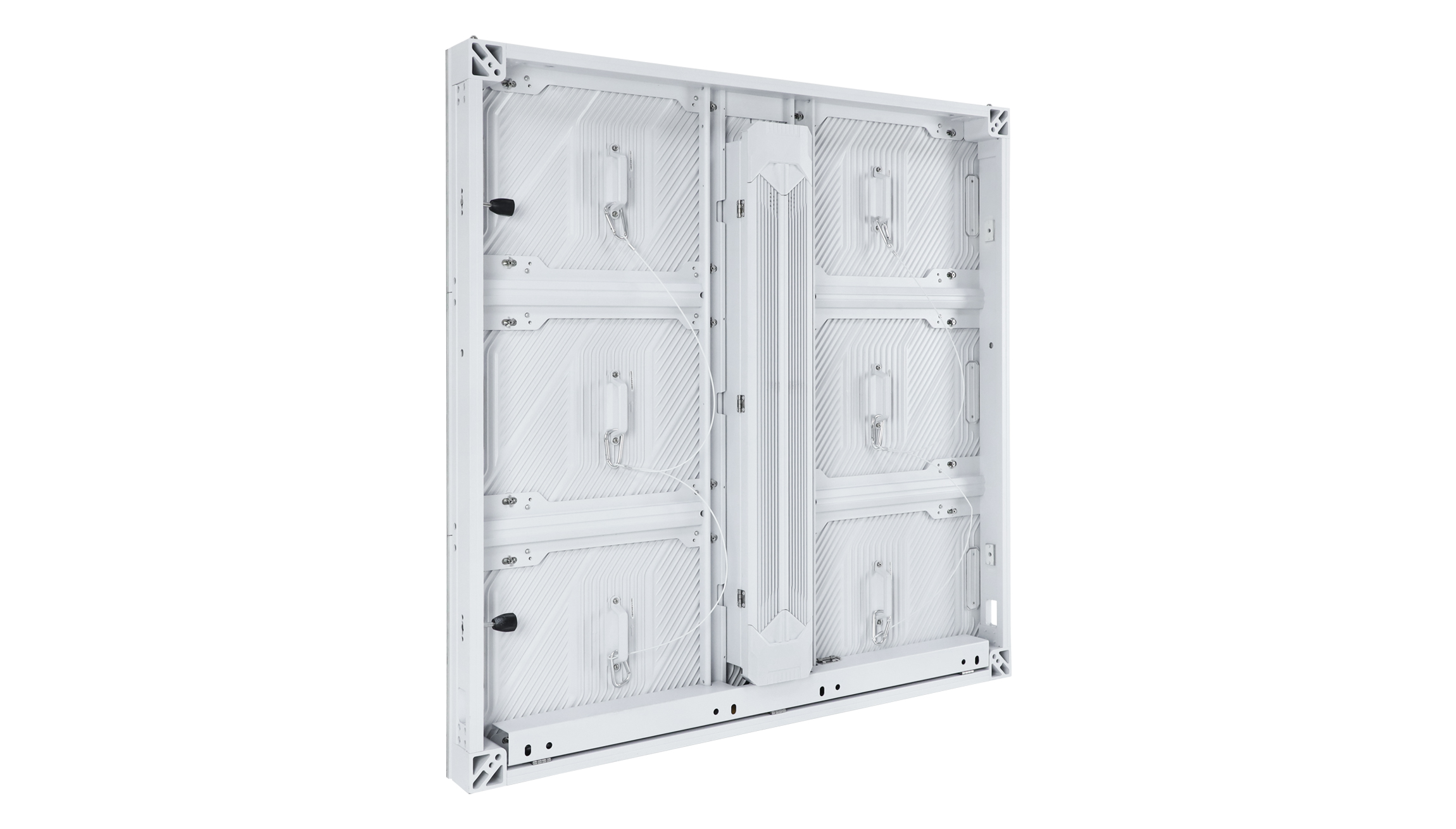

Module Quantity in Cabinet	2 (L) * 3 (H)
Protection Grade	IP65

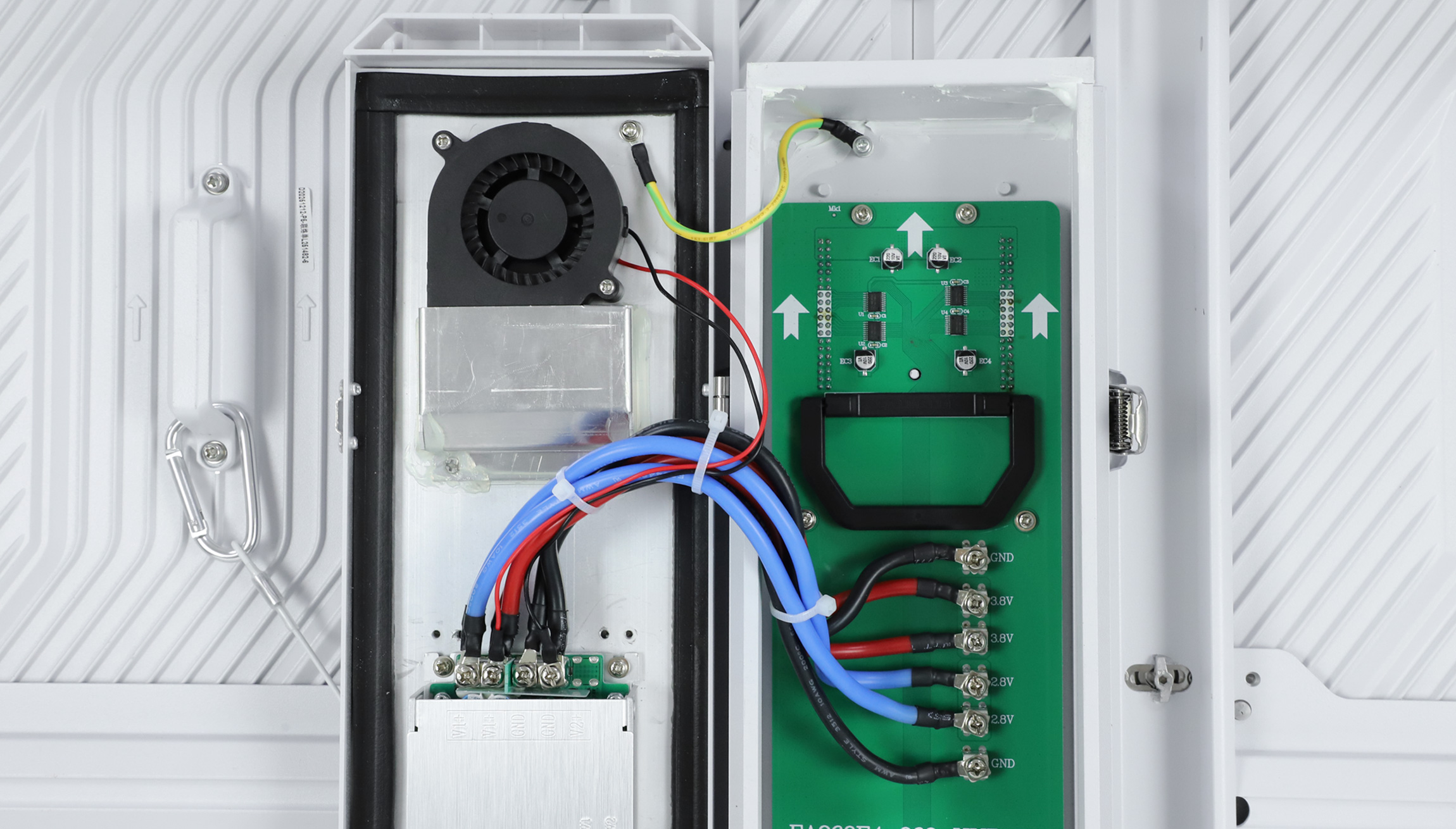

Maintenance Access	Dual Service (Front & Rear)
Special Options	45° Mitered Edge / 90° Arc Curved
