USS1000F2 Series Outdoor Front Service LED Display

العلامة: الموديل: USS1000F2

USS1000F2 is a high-performance outdoor front service LED display designed for versatile commercial and billboard applications. Built on 500x250mm modules, it offers a lightweight aluminum cabinet, fast heat dissipation with high-efficiency cooling fans, and IP65 dustproof/waterproof protection. It supports dual-service maintenance (front and rear) to significantly reduce maintenance costs, combined with hidden cable routing at the bottom for a clean setup. Available with optional 45° beveled-edge cabinets for right-angle installations and 90° arc curved cabinets for naked-eye 3D visual effects, it delivers outstanding visual quality with up to 6500 cd/m² brightness and a 3840Hz refresh rate.

أهم الميزات

Energy-saving design with fast heat dissipation
Dual service mode for front and rear maintenance access

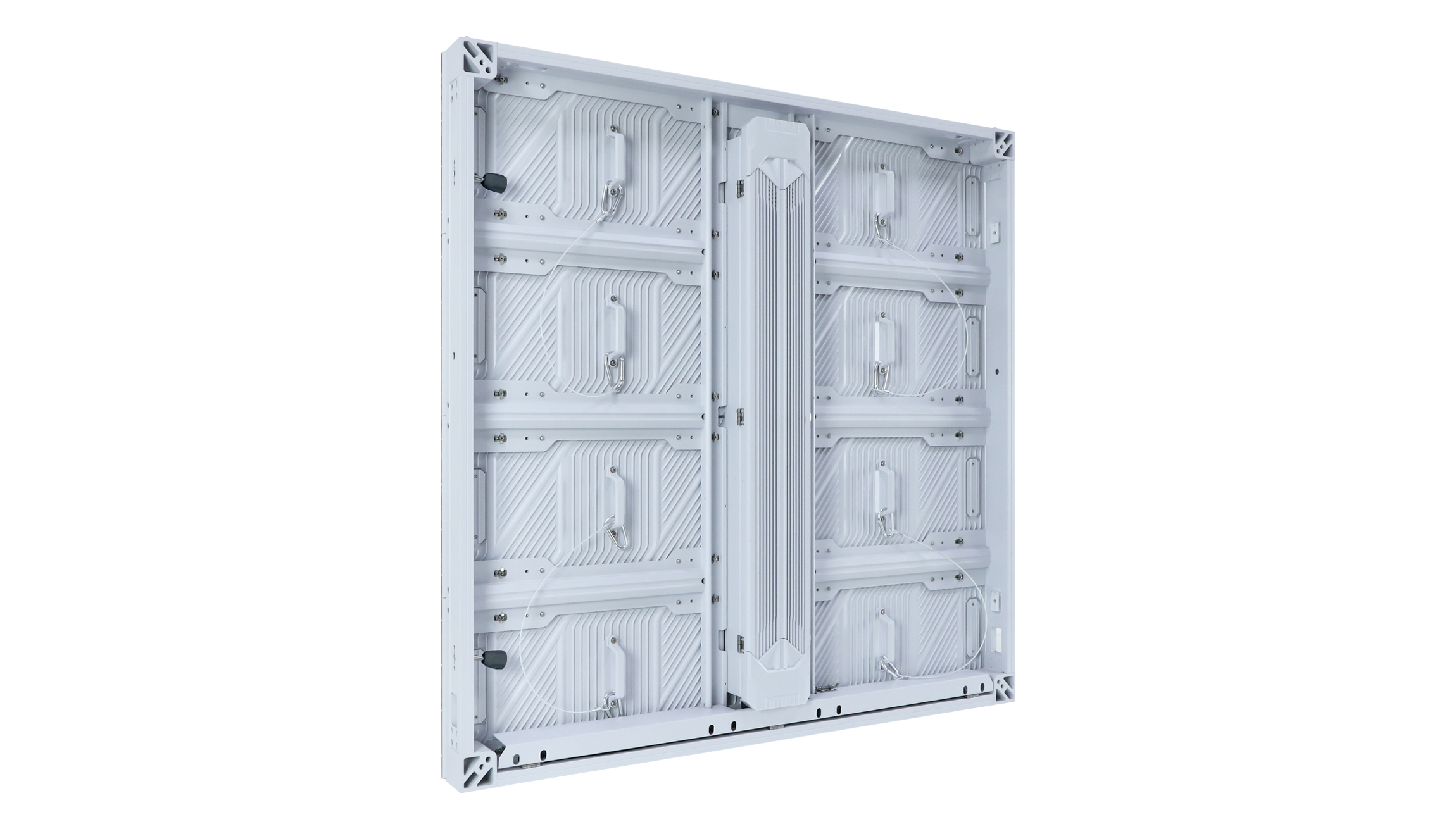

Lightweight aluminum profile cabinet structure
IP65 dustproof and waterproof protection
HUB connection for simplified operation and cabling
6500 cd/m² high brightness and ≥3840Hz refresh rate
Hidden cable routing design at the bottom of cabinet
Optional 45° beveled-edge cabinet design
Optional 90° curved cabinet for 3D display effect
Six cabinet dimensions available based on 500x250mm LED modules

استفسر عن المنتج اطلب عرضاً

المواصفات الفنية

البند	القيمة
Cabinet Dimension (Standard)	1000 * 1000 * 80 mm
Available Cabinet Sizes	1000500 / 1000750 / 10001000 / 1500500 / 1500750 / 15001000 mm
Module Size (LH)	500 * 250 mm
Cabinet Material	Aluminum (Standard) / Steel (90° Curve)
Cabinet Weight	28.4 KG (Standard) / 21-22.6 KG (Curve)
Protection Grade	IP65
Brightness	5000 - 6500 cd/m²
Screen Refresh Frequency	>= 3840 Hz
Frame Frequency	50/60 Hz
Gray Grade	16 bits
Display Color	4.4 trillion colors
Viewing Angle	140°(H) / 160°(V)
Max Power Consumption	650 - 800 W/m²
Average Power Consumption	100 - 300 W/m²
Operation Power	AC90-264V, 47-63Hz
Brightness Adjustment	100 grades by software or automatically by sensor
Input Signal	Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance	100M (Ethernet cable) / 20KM (Optical fiber cable)
Supported VGA Mode	800600, 1024768, 12801024, 16001200
Color Temperature	1000 - 18500 K (Standard) / 5000 - 12000 K (Curve)
Working Temperature	-20°C ~ +60°C
Storage Temperature	-20°C ~ +60°C
Working Humidity	10% ~ 85% RH
Out-of-Control Pixel Rate	<= 0.01%

المواصفات الفنية مصدرها الشركة المصنّعة وقد تتغير دون إشعار.

أقسام فنية إضافية

Environmental

البند	القيمة
Working Temperature	-20°C ~ +60°C
Storage Temperature	-20°C ~ +60°C
Working Humidity	10% ~ 85% RH
Out-of-Control Pixel Rate	<= 0.01%

Display & Visual

البند	القيمة
Module Size (LH)	500 * 250 mm
Screen Refresh Frequency	>= 3840 Hz
Frame Frequency	50/60 Hz
Gray Grade	16 bits
Display Color	4.4 trillion colors
Viewing Angle	140°(H) / 160°(V)
Brightness	5000 - 6500 cd/m²
Color Temperature (Standard)	1000 - 18500 K (Adjustable)
Color Temperature (Curve)	5000 - 12000 K (Adjustable)

Power & Electrical

البند	القيمة
Operation Power	AC90-264V, 47-63Hz
Max Power Consumption	650 - 800 W/m²
Average Power Consumption	100 - 300 W/m²
Brightness Adjustment	100 grades by software or automatically by sensor
Input Signal	Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance	100M (Ethernet cable) / 20KM (Optical fiber cable)
Supported VGA Mode	800600, 1024768, 12801024, 16001200

Mechanical & Physical

البند	القيمة
Cabinet Dimension (Standard)	1000 * 1000 * 80 mm
Cabinet Material	Aluminum (Standard) / Steel (Curve)
Cabinet Weight (Standard)	28.4 KG
Cabinet Weight (Curve)	21 - 22.6 KG
Protection Grade	IP65
Packaging	6 pcs / Case (1050 * 755 * 1180 mm, 208 kg)
