1 / 5USS960R4 960x960mm Advertising LED Display
USS960R4 is a high-performance $960\times960\text{mm}$ advertising LED display engineered for both rental and fixed installations. Constructed with strong, durable die-cast magnesium alloy and a double quick-lock design, it ensures effortless and rapid assembly. It features an openable back cover for rear service access, integrated fast-cooling dual fans, and a side-hole hidden line routing structure. Available in both outdoor (IP65 rated, up to $8000\text{ cd/m}^2$ brightness) and indoor variants, it delivers superb visual clarity with high contrast and a $\ge3840\text{Hz}$ refresh rate.
أهم الميزات
- Strong and durable die-cast magnesium alloy cabinet structure
- Double quick lock design on top and left for fast assembly
- Versatile usage for rental or fixed installation
- IP65 protection design for outdoor models
- High contrast and high refresh rate (≥3840Hz)

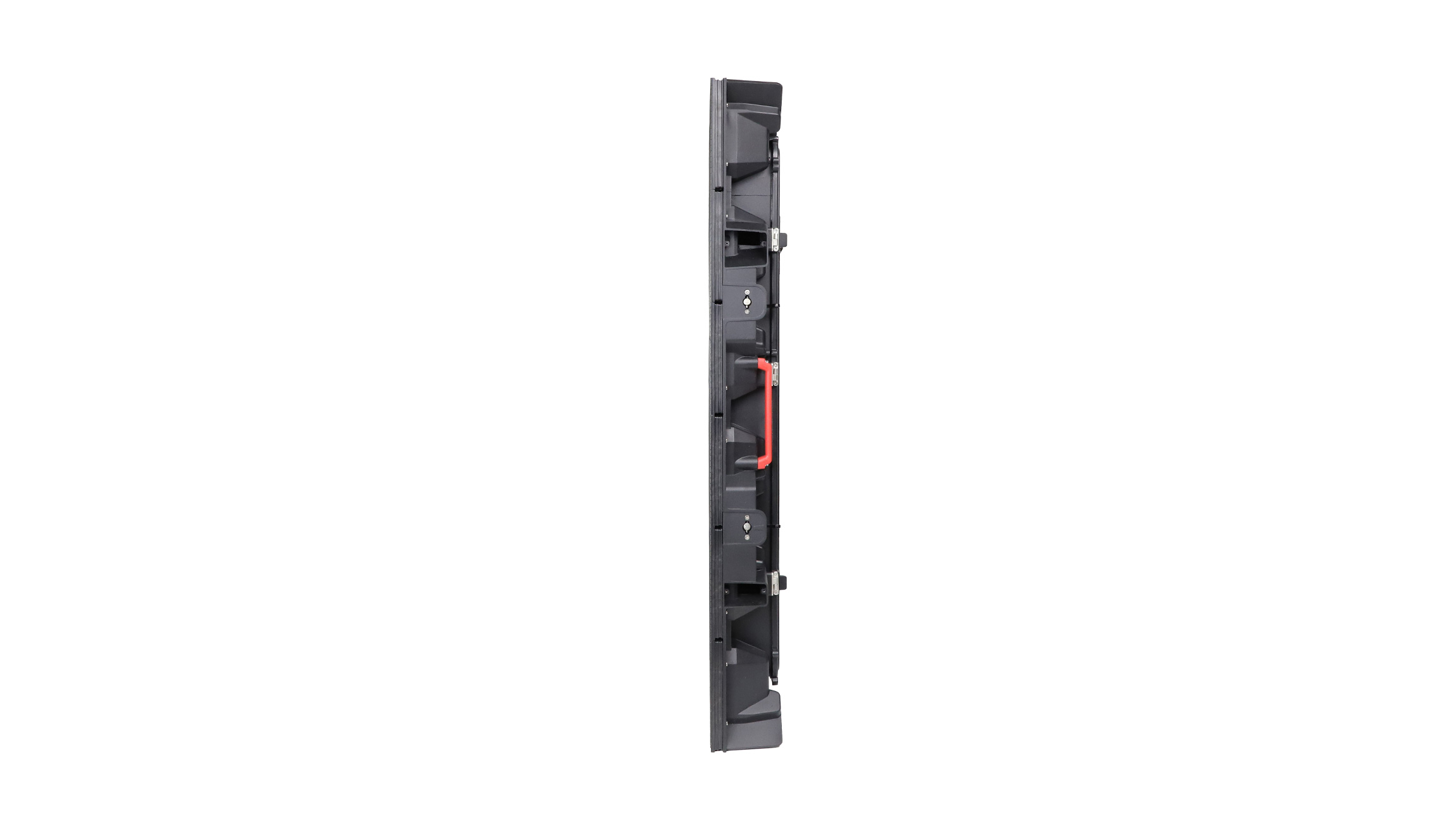

- Hidden line design with side-hole cable routing

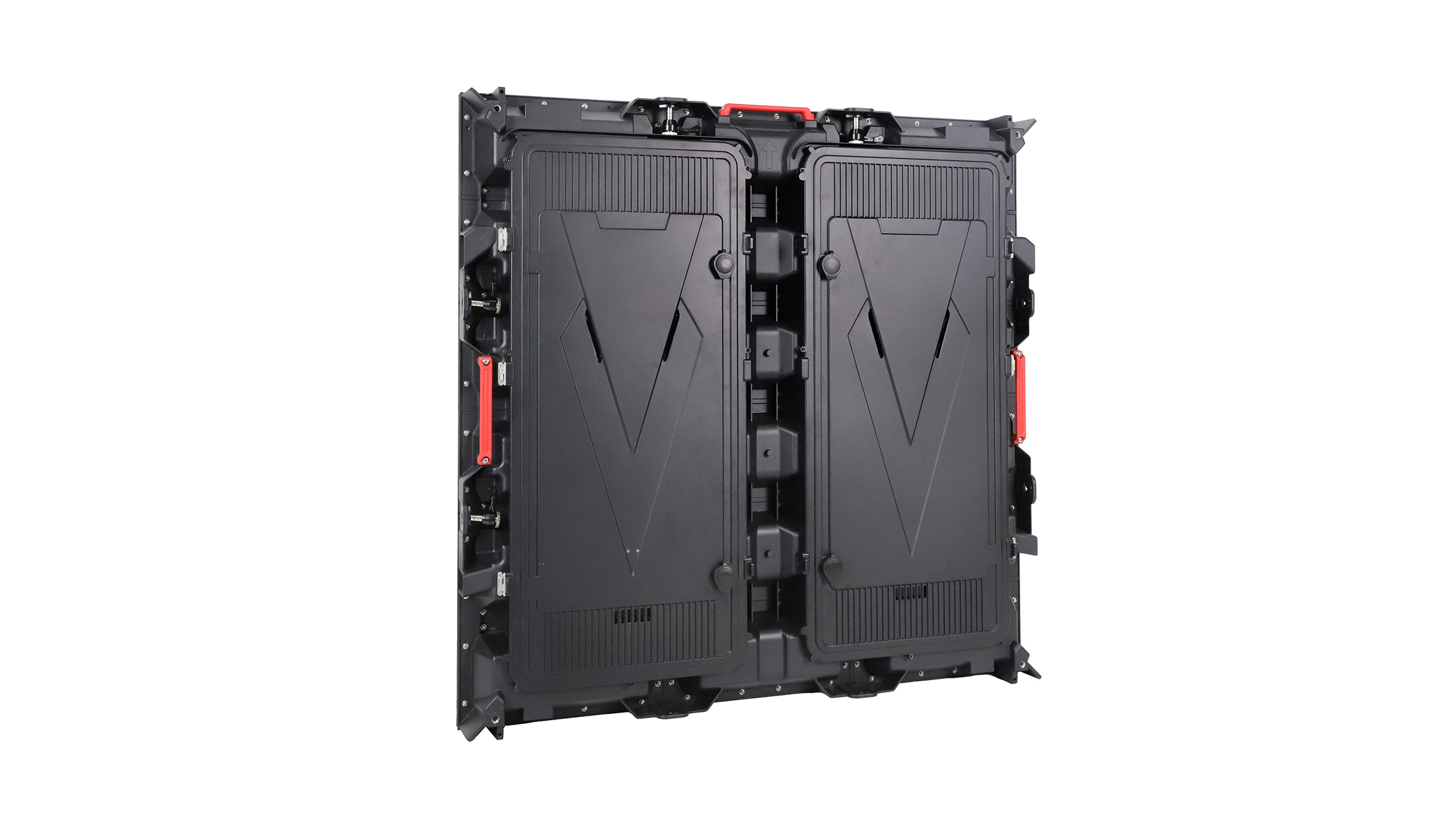

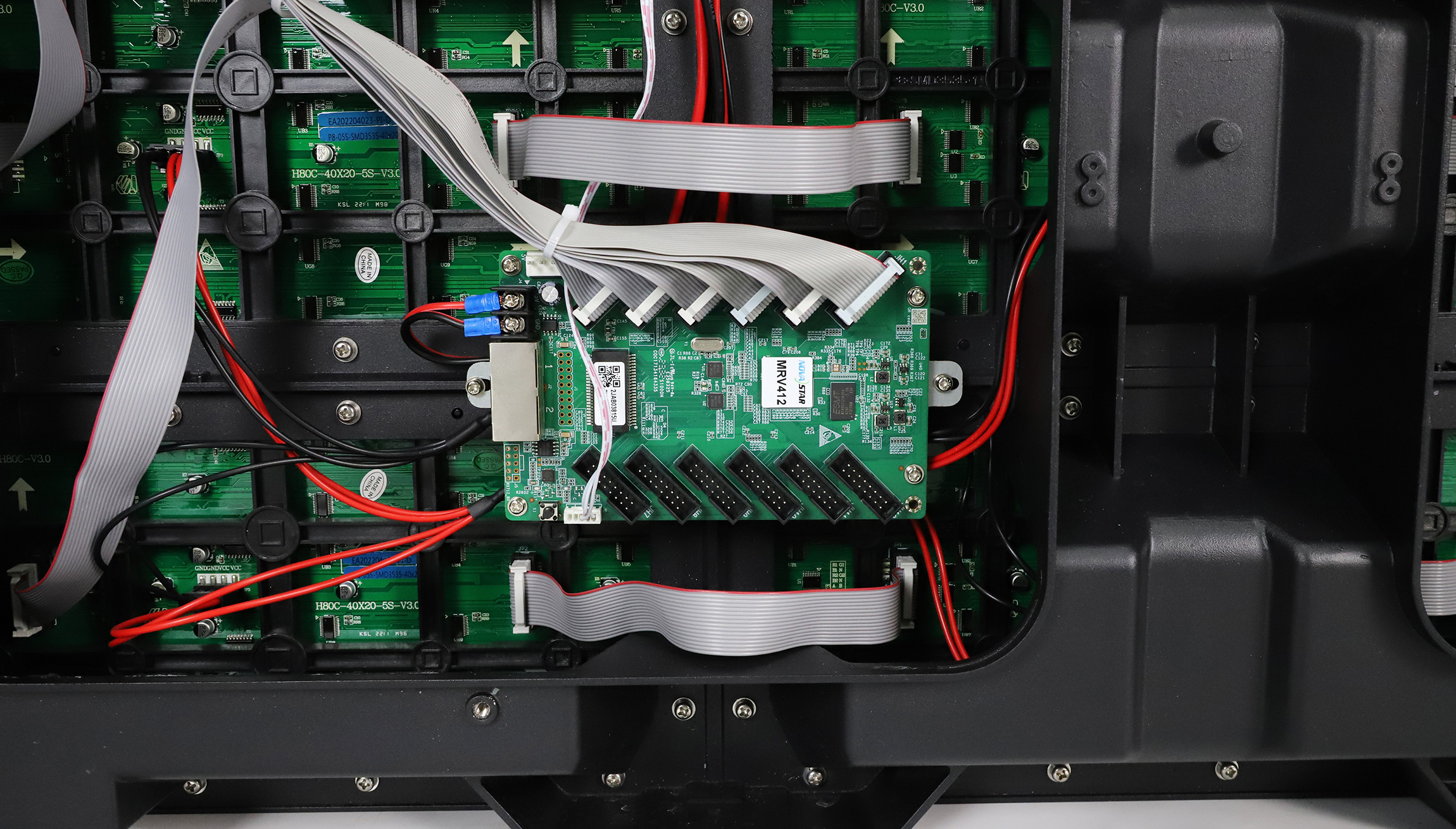

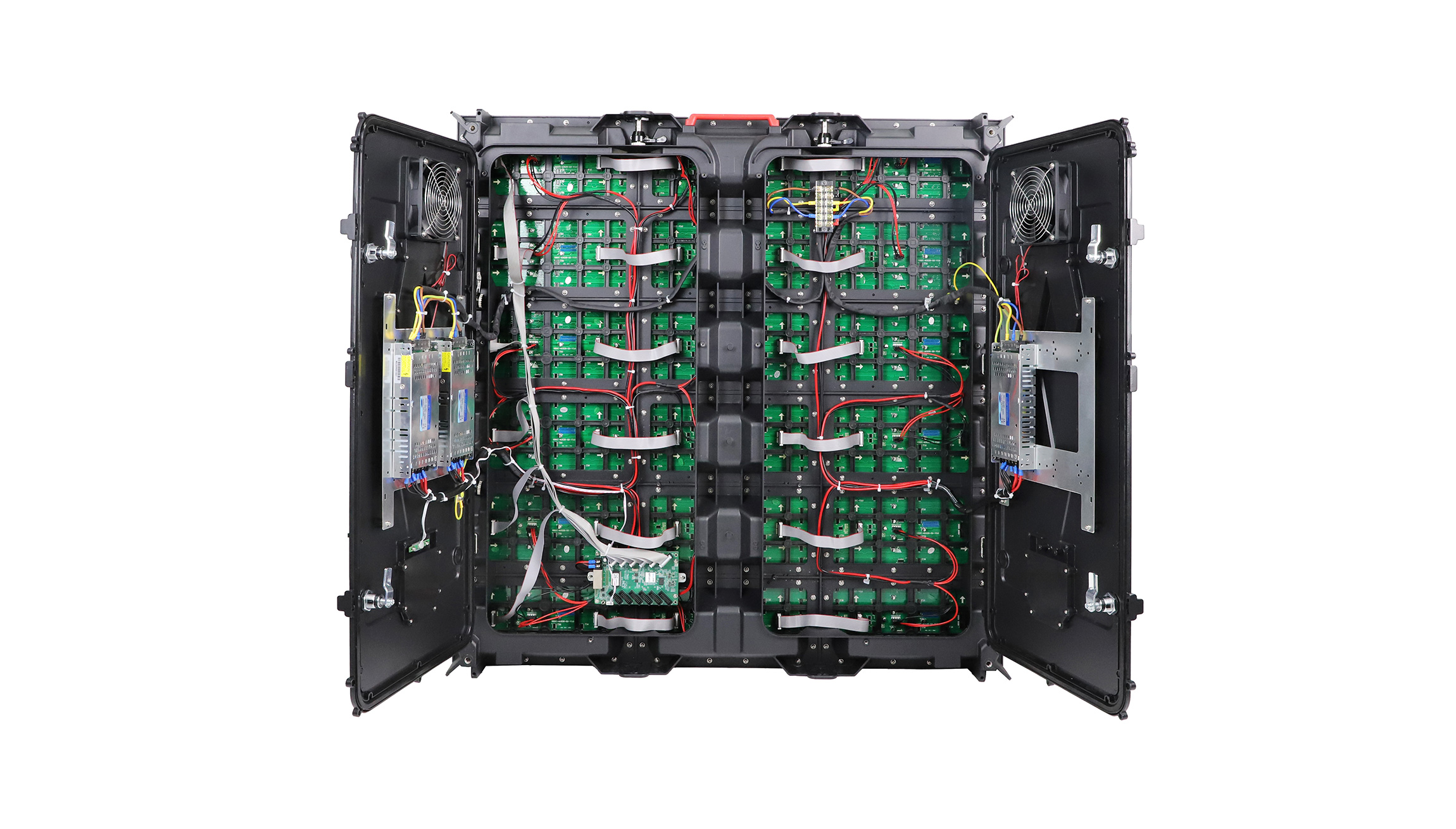

- Openable back cover with compact rear service design
- Fast cooling equipped with 2 built-in fans
- Supports both stack and hanging installation methods
المواصفات الفنية
| البند | القيمة |
|---|---|
| Cabinet Dimension (LHD) | 960 * 960 * 115 mm |
| Cabinet Material | Die-cast magnesium |
| Cabinet Weight (Outdoor) | ~23 KG |
| Cabinet Weight (Indoor) | ~19 KG |
| Module Size (LH) | 320 * 160 mm |
| Module Quantity in Cabinet | 3(L) * 6(H) |
| Protection Grade (Outdoor) | IP65 (front), IP54 (rear) |
| Protection Grade (Indoor) | IP31 |
| Screen Refresh Frequency | >= 3840 Hz |
| Frame Frequency | >= 60 Hz |
| Gray Grade | 14 bits |
| Display Color | 4.4 trillion colors |
| Viewing Angle | 140°(H) / 140°(V) |
| Brightness (Outdoor) | 5000 - 8000 cd/m² |
| Brightness (Indoor) | 700 - 800 cd/m² |
| Brightness Adjustment | 100 grades by software or automatically by sensor |
| Operation Power | AC100-240V 50-60Hz Switchable |
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI |
| Control Distance | 100M (Ethernet cable) / 20KM (Optical fiber cable) |
| Supported VGA Mode | 800600, 1024768, 12801024, 16001200 |
| Color Temperature | 5000 - 9300 K (adjustable) |
| Working Temperature | -20°C ~ +60°C |
| Storage Temperature | -30°C ~ +70°C |
| Working Humidity | 10% ~ 90% RH |
| Out-of-Control Pixel Rate | <= 0.01% |
المواصفات الفنية مصدرها الشركة المصنّعة وقد تتغير دون إشعار.
أقسام فنية إضافية
Environmental
| البند | القيمة |
|---|---|
| Working Temperature | -20°C ~ +60°C |
| Storage Temperature | -30°C ~ +70°C |
| Working Humidity | 10% ~ 90% RH |
| Out-of-Control Pixel Rate | <= 0.01% |
Power & Control
| البند | القيمة |
|---|---|
| Operation Power | AC100-240V 50-60Hz Switchable |
| Brightness Adjustment | 100 grades by software or automatically by sensor |
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI |
| Control Distance | 100M (Ethernet cable) / 20KM (Optical fiber cable) |
| Supported VGA Mode | 800600, 1024768, 12801024, 16001200 |
Display & Visual
| البند | القيمة |
|---|---|
| Cabinet Dimension (LHD) | 960 * 960 * 115 mm |
| Module Size (LH) | 320 * 160 mm |
| Screen Refresh Frequency | >= 3840 Hz |
| Frame Frequency | >= 60 Hz |
| Gray Grade | 14 bits |
| Display Color | 4.4 trillion colors |
| Viewing Angle | 140°(H) / 140°(V) |
| Color Temperature | 5000 - 9300 K (adjustable) |
| Outdoor Brightness | 5000 - 8000 cd/m² |
| Indoor Brightness | 700 - 800 cd/m² |
Mechanical & Physical
| البند | القيمة |
|---|---|
| Cabinet Material | Die-cast magnesium |
| Cabinet Weight (Outdoor) | ~23 KG |
| Cabinet Weight (Indoor) | ~19 KG |
| Module Quantity in Cabinet | 3(L) * 6(H) |
| Outdoor Protection Grade | IP65 (front), IP54 (rear) |
| Indoor Protection Grade | IP31 |
| Packaging | 6 pcs / Case (1010 * 845 * 1140 mm, 176 kg) |
الاستخدامات المناسبة
Outdoor Advertising Billboards
Indoor Commercial Displays
Rental Events & Concerts
Sports Arenas & Stadiums
Building Facades & Video Walls
