USS1920OP2 Outdoor Foldable Poster LED Screen

العلامة: الموديل: USS1920OP2

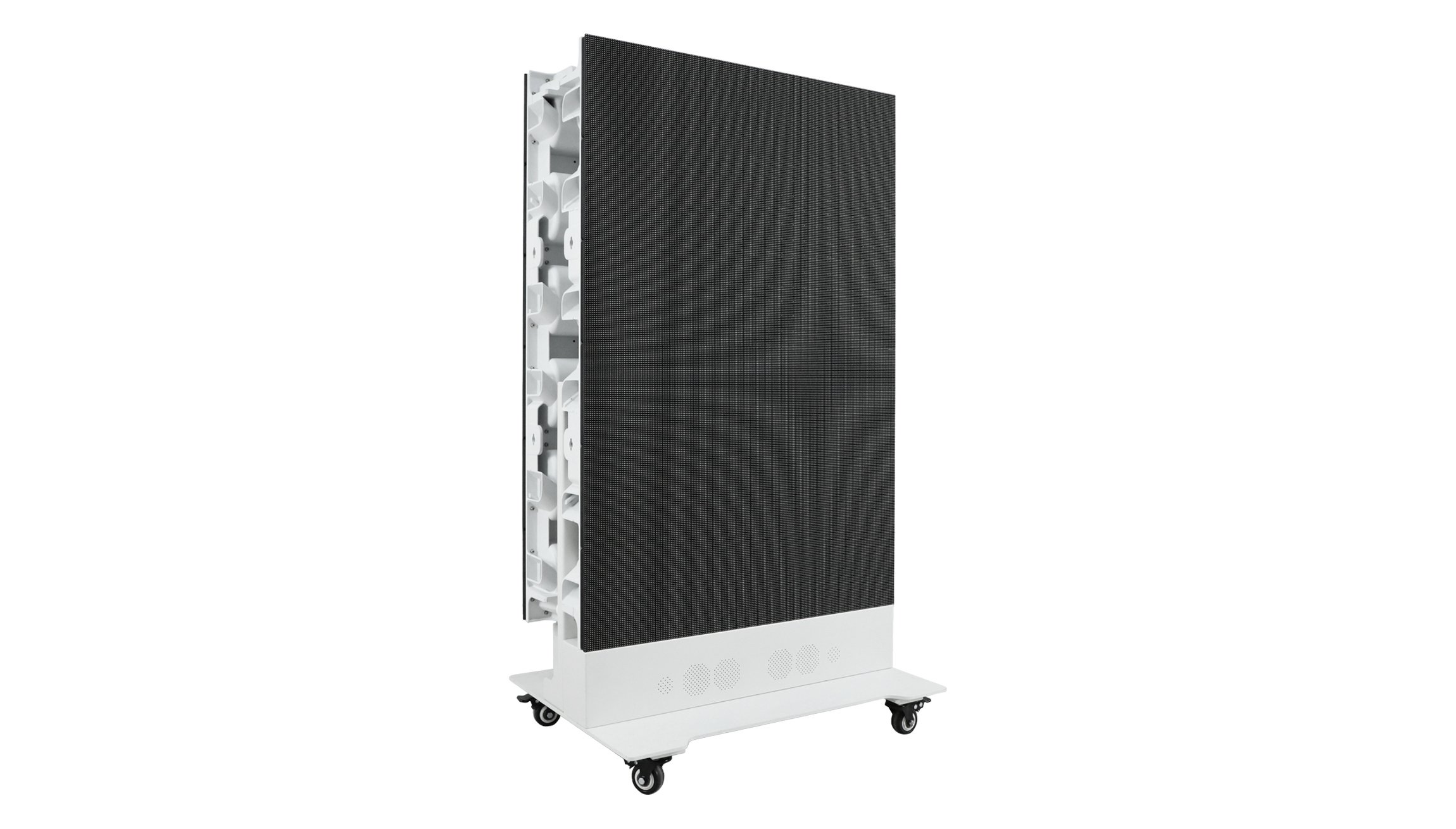

USS1920OP2 Series is an outdoor foldable poster LED screen designed with a 640x1920mm cabinet footprint. It features a creative double-sided folding frame and built-in link locks for seamless multi-screen splicing. Built with an openable power supply back cover, it ensures fast and effortless rear maintenance. The unit provides high brightness up to 5000 cd/m², a 3840Hz refresh rate, and IP65 dustproof/waterproof protection for harsh outdoor conditions. It comes equipped with integrated audio speakers, a dedicated volume control knob, and rich connectivity including USB 3.0, HDMI, and Ethernet ports.

أهم الميزات

640x1920mm size cabinet design

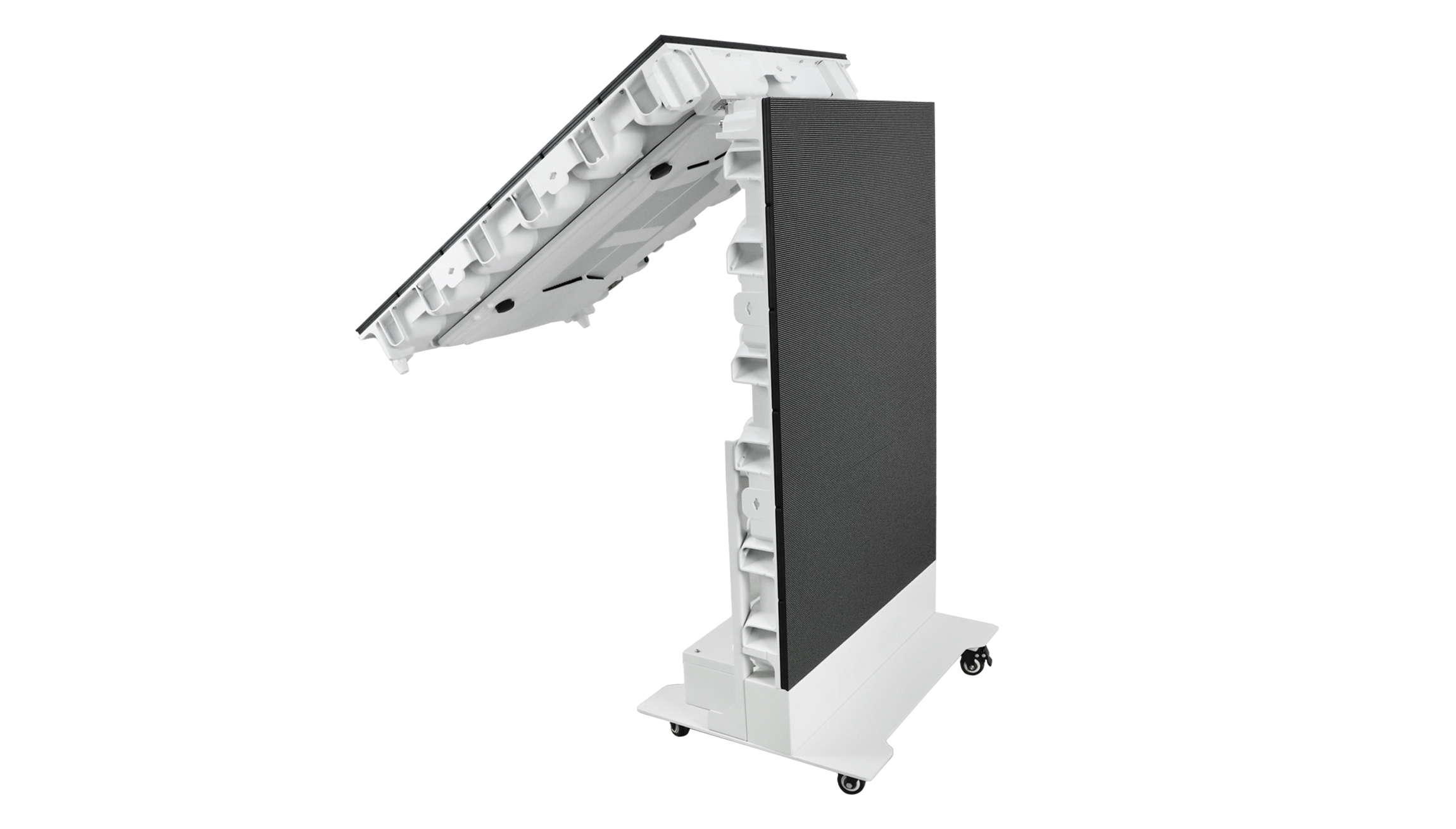

Creative double-sided folding mechanism
IP65 dustproof and waterproof rating for outdoor environments
Seamless multi-screen splicing supported by built-in link locks
Openable power supply back cover for fast rear maintenance
High contrast with 3840Hz high refresh rate
Built-in dual speakers for direct audio playback
Rich connectivity: USB 3.0, HDMI IN/OUT, Ethernet, and volume control knob

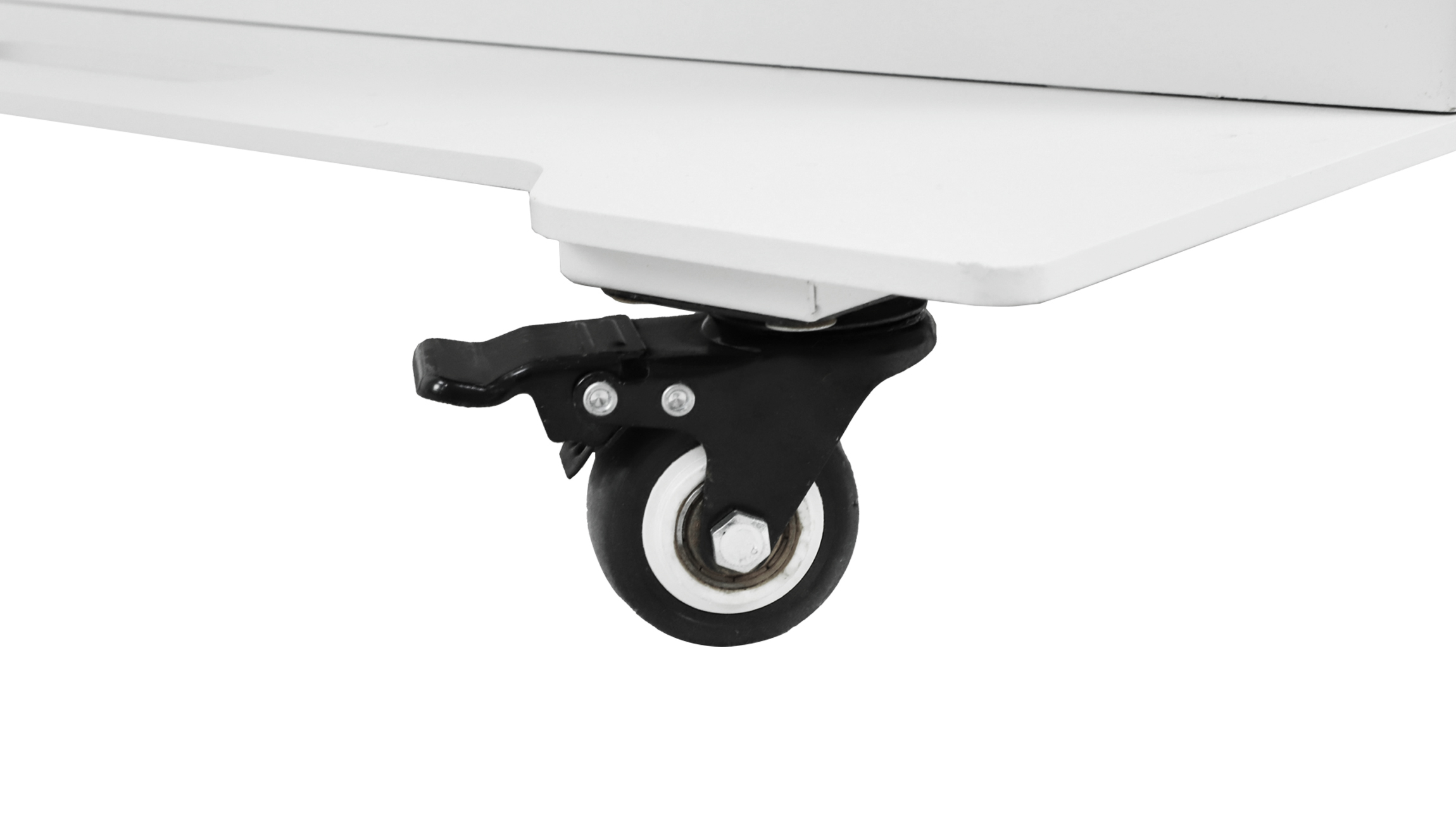

Base equipped with wheels for easy mobility
High brightness options reaching up to 5000 cd/m²

استفسر عن المنتج اطلب عرضاً

المواصفات الفنية

البند	القيمة
Display Dimension (LHD)	640 * 1920 * 120 mm
Pixel Pitch Options	1.86mm / 2mm / 2.5mm
Module Size (LH)	320 * 160 mm
Display Material	Die-cast magnesium
Display Weight	58.2 KG
Protection Grade	IP65
Brightness Range	4000 - 5000 cd/m²
Screen Refresh Frequency	>= 3840 Hz
Frame Frequency	>= 60 Hz
Gray Grade	14 bits
Display Color	4.4 trillion colors
Viewing Angle	140° (H) / 140° (V)
Max Power Consumption	648 W/m²
Average Power Consumption	216 W/m²
Operation Power	AC100-240V 50-60Hz Switchable
Brightness Adjustment	100 grades by software or automatically by sensor
Input Signal	Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance	100M (Ethernet cable) / 20KM (Optical fiber cable)
Supported VGA Mode	800600, 1024768, 12801024, 16001200
Color Temperature	2000K - 9500K adjustable
Working Temperature	-10°C ~ +60°C
Storage Temperature	-30°C ~ +70°C
Working Humidity	10% ~ 90% RH
Out-of-Control Pixel Rate	<= 0.01%

المواصفات الفنية مصدرها الشركة المصنّعة وقد تتغير دون إشعار.

أقسام فنية إضافية

Environmental

البند	القيمة
Working Temperature	-10°C ~ +60°C
Storage Temperature	-30°C ~ +70°C
Working Humidity	10% ~ 90% RH
Out-of-Control Pixel Rate	<= 0.01%

Display & Visual

البند	القيمة
Pixel Pitch Options	1.86mm / 2mm / 2.5mm
Module Size (LH)	320 * 160 mm
Screen Refresh Frequency	>= 3840 Hz
Frame Frequency	>= 60 Hz
Gray Grade	14 bits
Display Color	4.4 trillion colors
Viewing Angle	140° (H) / 140° (V)
Brightness Range	4000 - 5000 cd/m²
Color Temperature	2000K - 9500K adjustable
Brightness Adjustment	100 grades by software or auto sensor

Power & Connectivity

البند	القيمة
Operation Power	AC100-240V 50-60Hz Switchable
Max Power Consumption	648 W/m²
Average Power Consumption	216 W/m²
Interfaces	USB 3.0, HDMI IN, HDMI OUT, Ethernet, Power IN, Power OUT, Volume Control
Input Signal	Composite Video, S-video, DVI, HDMI, SDI, HD-SDI
Control Distance	100M (Ethernet cable) / 20KM (Optical fiber cable)

Mechanical & Physical

البند	القيمة
Display Dimension (LHD)	640 * 1920 * 120 mm
Display Material	Die-cast magnesium
Display Weight	58.2 KG
Protection Grade	IP65
Packaging 1pc/case	780 * 625 * 1374 mm (107 KG)
Packaging 2pcs/case	780 * 1227 * 1374 mm (189 KG)
